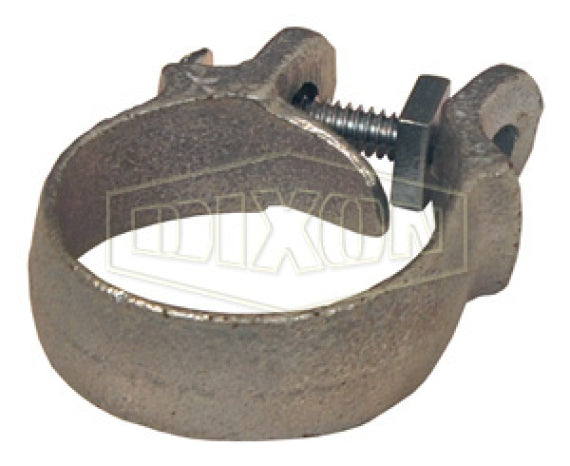

2 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 56/64" to 1" | Plated Iron

2 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 56/64" to 1" | Plated Iron

Save $8.97 Save $8.97
$22.42
$22.42 - $22.42
$22.42
$13.45
$13.45 - $13.45
$13.45

Dixon Valve
Single Bolt Clamps
Specifications for Variant SKU: 2 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 0.875
Maximum Clamp I.D.: 1
Note:
  • Measure hose O.D. accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
2 56/64" 1" 6
4 1-4/64" 1-12/64" 6
6 1-16/64" 1-24/64" 6
10 1-42/64" 1-48/64" 6
11 1-48/64" 1-56/64" 6
16 2-24/64" 2-32/64" 12
25 4-8/64" 4-20/64" 21
X27 4-40/64" 4-56/64" 21
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
