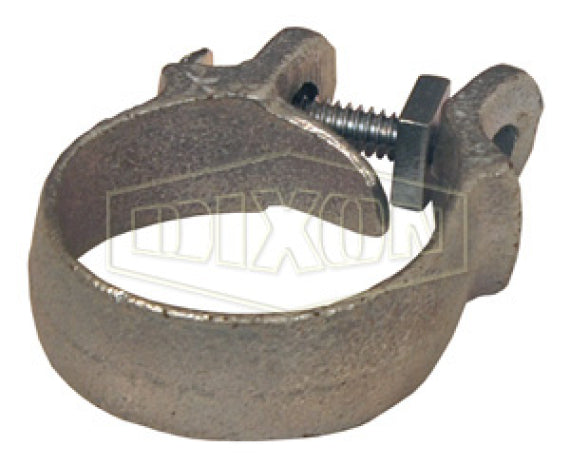

4 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 1-4/64" to 1-12/64" | Plated Iron

4 by Dixon Valve | Single Bolt Clamp | Hose OD Range: from 1-4/64" to 1-12/64" | Plated Iron

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
Single Bolt Clamps
Specifications for Variant SKU: 4 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 1.0625
Maximum Clamp I.D.: 1.1875
Note:
  • Measure hose O.D. accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
2 56/64" 1" 6
4 1-4/64" 1-12/64" 6
6 1-16/64" 1-24/64" 6
10 1-42/64" 1-48/64" 6
11 1-48/64" 1-56/64" 6
16 2-24/64" 2-32/64" 12
25 4-8/64" 4-20/64" 21
X27 4-40/64" 4-56/64" 21
