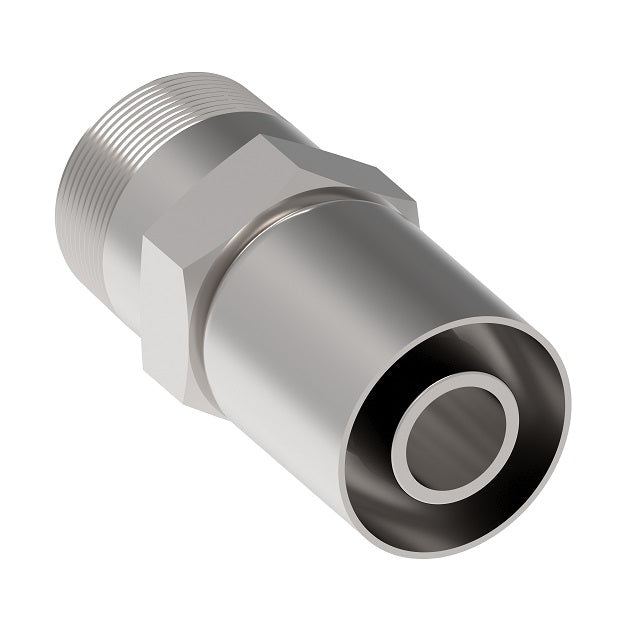

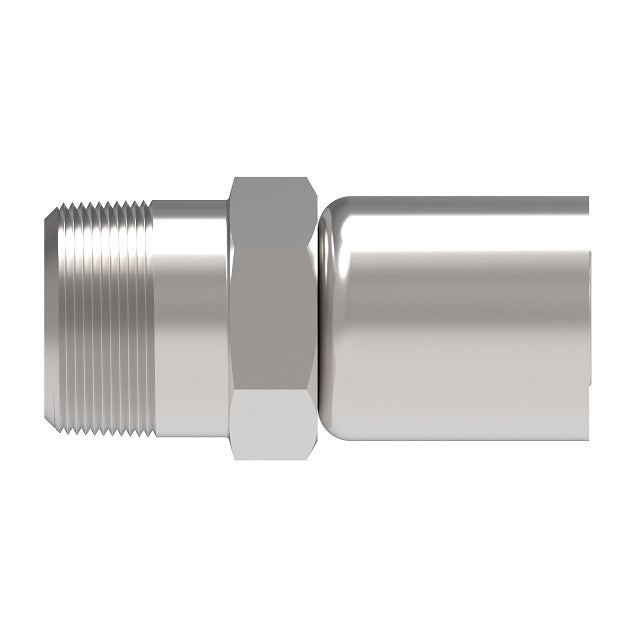

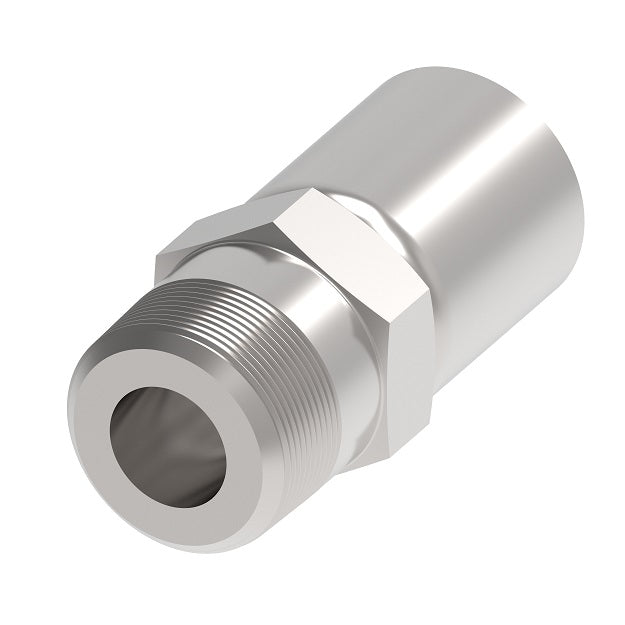

20-120-A by Danfoss | Conv-O-Crimp | Male Pipe Convoluted Hose Fitting | -20 Male Pipe x -20 Hose Barb | 316/304 Stainless Steel
20-120-A by Danfoss | Conv-O-Crimp | Male Pipe Convoluted Hose Fitting | -20 Male Pipe x -20 Hose Barb | 316/304 Stainless Steel
20-120-A by Danfoss | Conv-O-Crimp | Male Pipe Convoluted Hose Fitting | -20 Male Pipe x -20 Hose Barb | 316/304 Stainless Steel
20-120-A by Danfoss | Conv-O-Crimp | Male Pipe Convoluted Hose Fitting | -20 Male Pipe x -20 Hose Barb | 316/304 Stainless Steel

20-120-A by Danfoss | Conv-O-Crimp | Male Pipe Convoluted Hose Fitting | -20 Male Pipe x -20 Hose Barb | 316/304 Stainless Steel

$248.72 - $248.72
$248.72
$248.72 - $248.72
$248.72

Conv-O-Crimp by Danfoss
Crimp Fitting for Everflex Hose - Male Pipe (NPT) - Straight
Specifications for Variant SKU: 20-120-A Danfoss
Ends Configuration: 1-1/4in Male NPT, 1-1/4in Hose Barb
Material(s): 304 Stainless Steel, 316 Stainless Steel
Compatible with the following Series: Conv-O-Crimp Series
About:
  • The unique Everflex Conv-O-Crimp hose end are shipped with factory-installed Teflon™ fluoropolymer sleeves on the insert. This eliminates the time consuming, costly and subjective step of wrapping the hose end with Teflon™ fluoropolymer tape before assembly. The end result is a hose assembly system that is second to none in ease of assembly fabrication.
WARNING:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Compatible Hose:
  • Conv-O-Crimp Hose
Part Number
Insert: 316 S.S.
Nut & Collar: 304 S.S.		 Part Number
All Components: Carbon Steel		 Hose Size Hose ID Thread NPT Overall Length
A		 Hose Cut-Off Factor** Nominal ID
12-112-A 12-112-C -12 3/4" 3/4-14" 2.48" 1.38" 0.625"
16-116-A 16-116-C -16 1" 1-11-1/2" 2.95" 1.76" 0.828"
20-120-A - -20 1-1/4" 1-1/4-11-1/2" 2.98" 1.79" 1.078"
24-124-A 24-124-C -24 1-1/2" 1-1/2-11-1/2" 3.01" 1.82" 1.305"
32-132-A 32-132-C -32 2" 2-11-1/2" 3.43" 1.98" 1.781"

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
