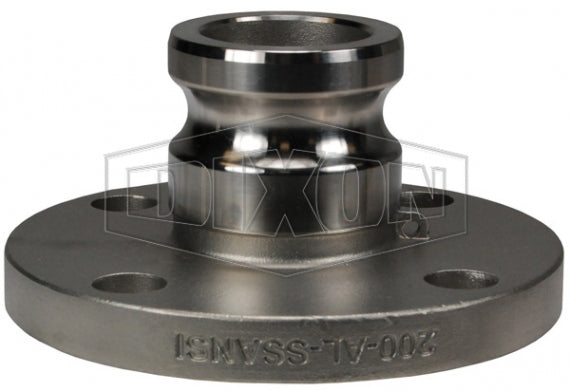

200-AL-SSANSI by Dixon Valve | Cam & Groove Flange Adapter | 2" Adapter x 150# ANSI Flange | 3/4" Flange Thickness | 316 Stainless Steel

200-AL-SSANSI by Dixon Valve | Cam & Groove Flange Adapter | 2" Adapter x 150# ANSI Flange | 3/4" Flange Thickness | 316 Stainless Steel

Save $104.30 Save $104.30
$260.75
$260.75 - $260.75
$260.75
$156.45
$156.45 - $156.45
$156.45

Dixon Valve
Cam & Groove Flange Adapter | Adapter x 150# ANSI Flange

Designed for use with liquids.
Specifications for Variant SKU: 200-AL-SSANSI Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Male Cam & Groove, 150# ANSI Flange
Material(s): 316 Stainless Steel
Features:
  • Global product made to Dixon® specifications.
  • Flange has raised face.
  • Flanges are designed to mate with #150 ANSI flange.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Part Number Material Size Flange Thickness Max. Operating Pressure
200-AL-SSANSI 316 Stainless Steel 2" 3/4" 250 PSI
300-AL-SSANSI 316 Stainless Steel 3" 15/16" 125 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
