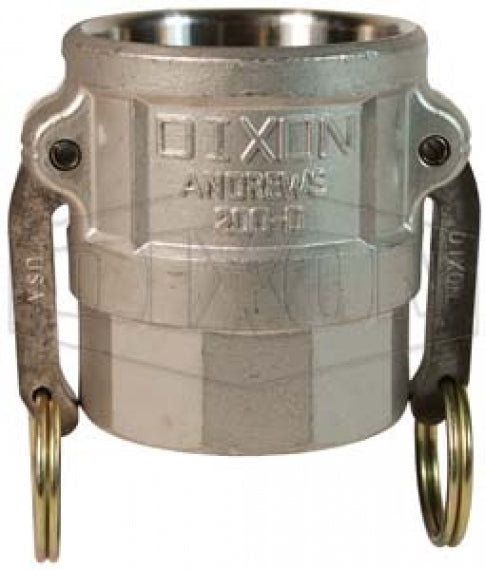

200-D-SS by Dixon Valve | Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | 316 Stainless Steel

200-D-SS by Dixon Valve | Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | 316 Stainless Steel

Save $52.98 Save $52.98
$132.45
$132.45 - $132.45
$132.45
$79.47
$79.47 - $79.47
$79.47

Dixon Valve
Cam & Groove Coupler | Type D | Coupler x Female NPT

Designed for use with liquids.
Specifications for Variant SKU: 200-D-SS Dixon
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
Construction:
  • Nitrile Rubber gasket.
  • 1/2" Dixon coupler has only one cam arm.
  • The 8" Dixon design has 4 cam arms.
  • Durable stainless steel cam arm pins.
Safety Notes:
  • Finger rings are not supplied on 1/2" size.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Dixon and Boss-Lock cam and groove couplings do not interchange in the 1/2" and 8" size.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
356T6 Aluminum
Part Number		 Aluminum Hard Coat
Part Number		 Brass
Part Number		 Unplated Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating Pressure
50-D-AL - 50-D-BR - 50-D-SS 1/2" 150 PSI
75-D-AL - 75-D-BR - 75-D-SS 3/4" 250 PSI
100-D-AL 100-D-BR - 100-D-SS 1" 250 PSI
125-D-AL - 125-D-BR - 125-D-SS 1-1/4" 250 PSI
150-D-AL 150-D-ALH 150-D-BR 150-D-MI 150-D-SS 1-1/2" 250 PSI
200-D-AL 200-D-ALH 200-D-BR 200-D-MI 200-D-SS 2" 250 PSI
250-D-AL - 250-D-BR - 250-D-SS 2-1/2" 150 PSI
300-D-AL 300-D-ALH 300-D-BR 300-D-MI* 300-D-SS 3" 125 PSI
400-D-AL 400-D-ALH 400-D-BR 400-D-MI* 400-D-SS 4" 100 PSI
500-D-AL - 500-D-BR 500-D-MI 500-D-SS 5" 75 PSI
600-D-AL 600-D-ALH 600-D-BR - 600-D-SS 6" 75 PSI
800-D-AL - - - - 8" 50 PSI

* Ductile Iron
