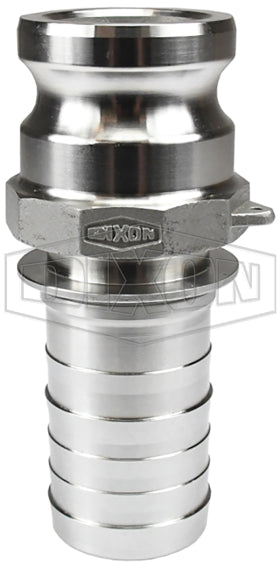

200-E-SSSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | 316 Stainless Steel

Name: 200-E-SSSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | 316 Stainless Steel
Brand: Dixon
SKU: 200-E-SSSWIV Dixon
Price: 199.27 USD
Availability: InStock

Save $132.85

$332.12

$332.12 - $332.12

$332.12

$199.27

$199.27 - $199.27

$199.27

Dixon Valve
Swivel Coupling Cam & Groove | Type E Adapter | Adapter x Hose Shank

Live swivel is capable of 360-degree rotation under pressure.

Specifications for Variant SKU: 200-E-SSSWIV Dixon
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	2in Male Cam & Groove, 2in Hose Barb
Material(s):	316 Stainless Steel
Special Properties:	Swivel

Features:
Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications. Gasket: nitrile rubber.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
200-E-ALSWIV	200-E-SSSWIV	2"	250 PSI
300-E-ALSWIV	300-E-SSSWIV	3"	125 PSI 150 PSI with King Crimp ferrule system
400-E-ALSWIV	400-E-SSSWIV	4"	100 PSI 150 PSI with King Crimp ferrule system

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
