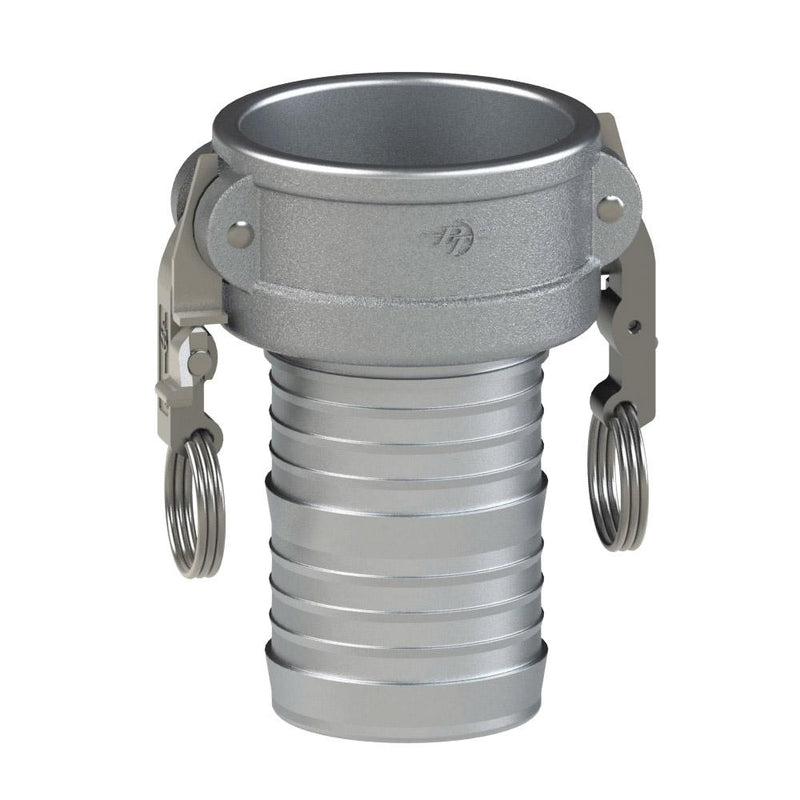

2000315L2 (15C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Hard Coat Aluminum | Buna-N Seal

Name: 2000315L2 (15C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Hard Coat Aluminum | Buna-N Seal
Brand: PT-Coupling
SKU: 2000315L2 PT-Coupling
Price: 46.84 USD
Availability: InStock

Save $5.86

$52.70

$52.70 - $52.70

$52.70

$46.84

$46.84 - $46.84

$46.84

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Hard Coat Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 2000315L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s):	Hard Coat Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10C SLII	2000310L2	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	250 PSI
12C-SLII	2000312L2	1-1/4"	1-1/4"	6.86"	3.26"	4.44"	1.84"	0.97"	0.88"	250 PSI
15C-SLII	2000315L2	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15	250 PSI
20C-SLII	2000320L2	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	250 PSI
25C-SLII	2000325L2	2-1/2"	2-1/2"	8.03"	4.43"	5.93"	2.18"	2.16"	2.06"	200 PSI
30C-SLII	2000330L2	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	200 PSI
40C-SLII	2000340L2	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	150 PSI
50C-SLII	2000350L2	5"	5"	11.67"	7.57"	7.24"	2.44"	4.53"	4.43"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
