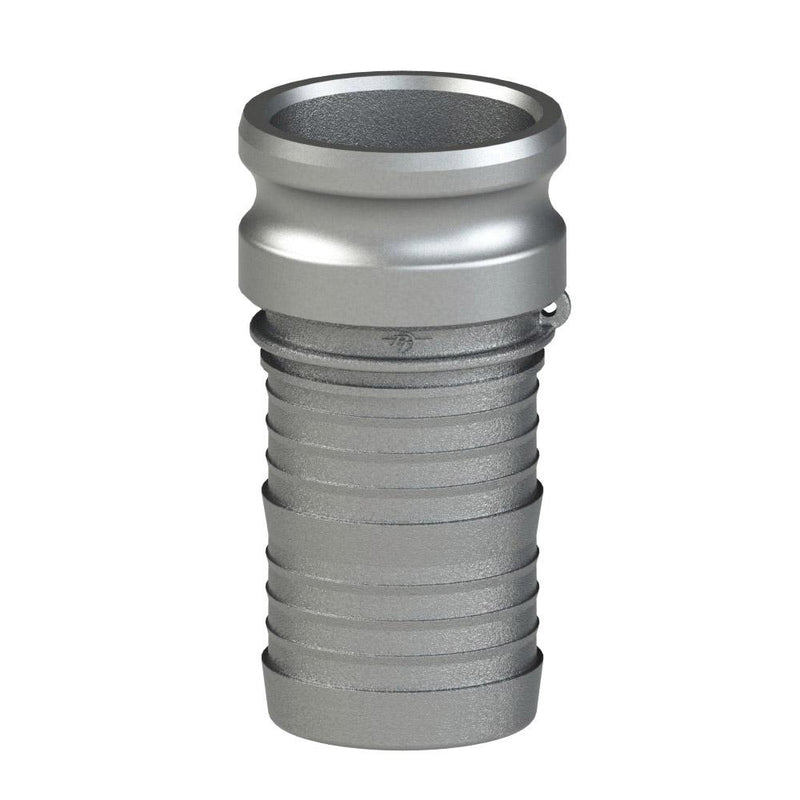

2000550 (50E) by PT-Coupling | Cam & Groove Fitting | Type E | 5" Adapter x 5" Hose Shank | Hard Coat Aluminum

Name: 2000550 (50E) by PT-Coupling | Cam & Groove Fitting | Type E | 5" Adapter x 5" Hose Shank | Hard Coat Aluminum
Brand: PT-Coupling
SKU: 2000550 PT-Coupling
Price: 125.65 USD
Availability: InStock

Save $74.17

$199.82

$199.82 - $199.82

$199.82

$125.65

$125.65 - $125.65

$125.65

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 2000550 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	5in Male Cam & Groove, 5in Hose Barb
Material(s):	Hard Coat Aluminum

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve. This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*
E05E	2000501	1/2"	1/2"	0.96"	2.56"	1.11"	0.38"	1.03"	250 PSI
07E	2000507	3/4"	3/4"	1.26"	3.78"	1.46"	0.53"	0.97"	250 PSI
10E	2000510	1"	1"	1.63"	4.30"	1.8"	0.88"	1.19"	250 PSI
12E	2000512	1-1/4"	1-1/4"	2.00"	4.90"	2.35"	0.97"	1.44"	250 PSI
15E	2000515	1-1/2"	1-1/2"	2.14"	5.10"	2.15"	1.19"	1.48"	250 PSI
20E	2000520	2"	2"	2.64"	5.75"	2.40"	1.68"	1.75"	250 PSI
25E	2000525	2-1/2"	2-1/2"	3.07"	6.63"	2.47"	2.13"	1.75"	200 PSI
30E	2000530	3"	3"	3.70"	6.88"	2.53"	2.62"	1.84"	200 PSI
40E	2000540	4"	4"	4.71"	7.20"	2.60"	3.50"	1.87"	150 PSI
50E	2000550	5"	5"	6.56"	7.56"	2.81"	4.53"	1.97"	75 PSI
60E	2000560	6"	6"	7.10"	10.10"	3.3"	5.53"	2.19"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
