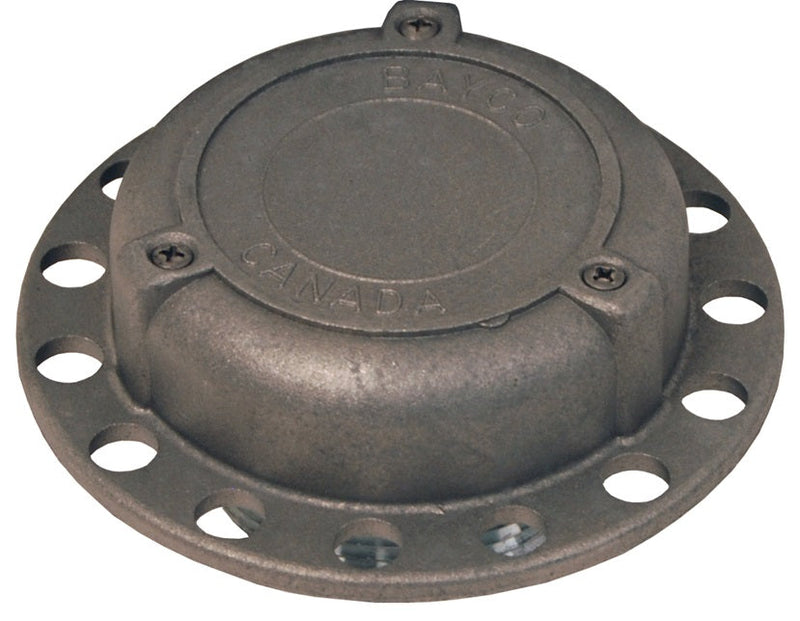

2000L by Dixon Valve | Automatic Pressure / Vacuum Relief Cap | For Stationary Fuel Tanks | 2" Male NPT | Zinc

2000L by Dixon Valve | Automatic Pressure / Vacuum Relief Cap | For Stationary Fuel Tanks | 2" Male NPT | Zinc

Save $5.39 Save $5.39
$52.28
$52.28 - $52.28
$52.28
$46.89
$46.89 - $46.89
$46.89

Dixon Valve
Tank Truck | Automatic Pressure / Vacuum Relief Cap For Stationary Fuel Tanks

These caps are threaded into the top of stationary (non-mobile) above ground fuel storage tanks, where they serve 2 purposes:
a) they can be used as a thread in and lockable fuel filter cap.
b) They protect the tank from expansion or implosion, the internal relief valve is normally closed, but opens to relieve internal pressure or vacuum.
Specifications for Variant SKU: 2000L Dixon
Brand: Bayco
Shape (Orientation): No Orientation
Ends Configuration: 2in Male NPT
Material(s): Zinc
Features:
  • Pad-lockable to prevent fuel theft and tampering.
Construction:
  • Die cast zinc body.
  • Brass screen.
Use:
  • Normally closed vent stops fuel evaporation and airborne contaminants.
  • Protects tank from pressure or vacuum build-up. Relieve pressure at 2 PSI and vacuum at 0.7 HG at a rate of 20 SCFM.
  • Can be used as a fuel filler cap.
Specifications:
  • Relieves vacuum at .7 Hg (.33 PSI) and pressure at 2 PSI, 20 SCFM flow.
  • Manufactured to thread into both NPS and NPT tank openings.
Safety Notes:
  • Not intended for use on mobile tanks. To ensure that the cap can properly vent, the vent cap must be kept free of any debris i.e. dirt, snow, ice, rags etc.
Part Number Male NPT
2000L 2"
2500L 2-1/2"
