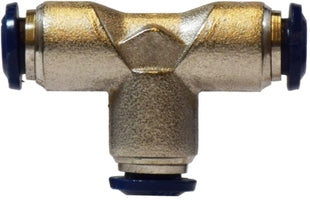

20029N (20-029N) Midland Push-In Fitting - Union Tee - 3/8" Tube OD - Nickel Plated Brass

20029N by Midland | Push-In Fitting | Union | 3/8" Tube OD | Tee | Nickel Plated Brass

Save $1.54

$13.85

$13.85 - $13.85

$13.85

$12.31

$12.31 - $12.31

$12.31

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Union Tee

<

Inventory @ Manufacturers Warehouse: 744 Units

Quantity

Specifications for Variant SKU: 20029N Midland
Shape (Orientation):	Tee
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass

Features:
Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum

Component Parts and Materials:
Body	Brass - Nickel Plated
Thrust Ring	Acetalic Resin/ Glass filled Nylon
Sleeve	Brass - Nickel Plated
Gripper Collet	Stainless Steel
Safety Ring	PA66
Lip Seal (1/8" O-Ring Seal)	NBR 70
Thread Seal	NBR 70

Crossover Series:
164PL	88230


Part Number	Tube O.D.	A	Body Size	Approx. Weight (Lbs.)
20025N (20-025N)	1/8"	0.67"	0.35"	0.04
20026N (20-026N)	5/32"	0.67"	0.35"	0.04
20028N (20-028N)	1/4"	0.83"	0.43"	0.09
20031N (20-031N)	5/16"	0.87"	0.51"	0.10
20029N (20-029N)	3/8"	1.04"	0.63"	0.13
20030N (20-030N)	1/2"	1.20"	0.74"	0.24

Dimension data can change without notice.
