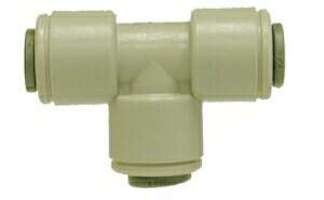

20029P (20-029P) Midland Push-In Tube Fitting - Union Tee - 3/8" Tube OD - Plastic

20029P by Midland | Push-In Tube Fitting | Union | 3/8" Tube OD | Tee | Plastic

Save $0.78

$5.01

$5.01 - $5.01

$5.01

$4.23

$4.23 - $4.23

$4.23

Midland Industries
Plastic Push-in Tube Fitting - Union Tee - Push-In Fitting x Push-In Fitting x Push-In Fitting - Plastic

Inventory @ Manufacturers Warehouse: 1181 Units

Quantity

Specifications for Variant SKU: 20029P Midland
Shape (Orientation):	Tee
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	POM
Applicable Specs & Approvals:	Applicable FDA Requirements, Applicable WRAS Standards, NSF 51, NSF 61, SK Zert

Applications:
Widely used in water purification, food/beverage and pneumatic systems. Beyond water and food use, fittings can be used with air, gases, vacuum, & liquids.
Features:
All connections can be assembled & disassembled repeatedly. Function & Quality : Provides quick and convenient assembly - saving time & expense. The ISO9001, 14001 registered quality system ensures customers a superior level of product quality. Defects are easily detectable and maintenance is easy with its easy dismantling for access. Collet Design : Unique oval collet design is superior and more practical.
Specifications:
Manufactured from safe, non-toxic materials meeting the requirements of the US FDA, WRAS, ANSI/NSF-51, 61, and SK Zert.
Materials:
Grey Acetal Copolymer, also known as POM. Highly durable and resistant to fatigue and creep. It has high resistance to a wide range of organic & inorganic chemicals and detergents. Not recommended for use with strong acids or repeated exposure to strong oxidizers. (polypropylene may be subbed)
Notes:
Fittings are not recommended for use with liquids other than water and food or beverage products. Do not use pipe dope or other liquid thread sealers. Use only Teflon tape to seal threaded connections. After assembling a tube connection, tug with moderate force to check for proper gripping of the tube. Before disassembling tube connections, always verify that pressure has been removed from the system.
Pressure:

Part Number	Tube OD
20028P (20-028P)	1/4" x 1/4" x 1/4"
20029P (20-029P)	3/8" x 3/8" x 3/8"
20030P (20-030P)	1/2" x 1/2" x 1/2"
