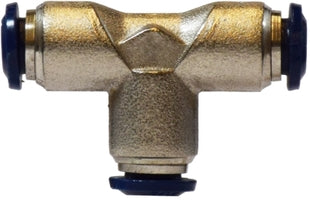

20030N by Midland | Push-In Fitting | Union | 1/2" Tube OD | Tee | Nickel Plated Brass

Save $2.13 Save $2.13
Original price $19.18
Original price $19.18 - Original price $19.18
Original price $19.18
Current price $17.05
$17.05 - $17.05
Current price $17.05

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Union Tee

<

Inventory @ Manufacturers Warehouse: 313 Units

Specifications for Variant SKU: 20030N Midland
Shape (Orientation): Tee
Ends Configuration: 1/2in Push-to-Connect, 1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
164PL 88230
Part Number Tube O.D. A Body Size Approx. Weight
(Lbs.)
20025N
(20-025N)
1/8" 0.67" 0.35" 0.04
20026N
(20-026N)
5/32" 0.67" 0.35" 0.04
20028N
(20-028N)
1/4" 0.83" 0.43" 0.09
20031N
(20-031N)
5/16" 0.87" 0.51" 0.10
20029N
(20-029N)
3/8" 1.04" 0.63" 0.13
20030N
(20-030N)
1/2" 1.20" 0.74" 0.24

Dimension data can change without notice.
