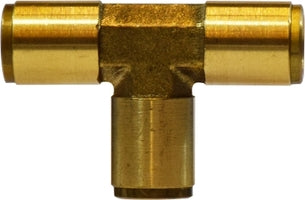

20031 (20-031) Midland Push-In Fitting - Union Tee - 5/16" Tube OD - Nickel Plated Brass

20031 by Midland | Push-In Fitting | Union | 5/16" Tube OD | Nickel Plated Brass

Save $12.68 Save $12.68
$31.70
$31.70 - $31.70
$31.70
$19.02
$19.02 - $19.02
$19.02

Midland Industries
Brass Fitting - Push-In Fitting - Union Tee - Brass
Specifications for Variant SKU: 20031 Midland
Shape (Orientation): Tee
Ends Configuration: 5/16in Push-to-Connect, 5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Temperature Range: -10°F to 200°F
  • Tolerance: +/- .02 on all dimensions.
  • Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
  • Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required.
  • Reuseable - connect and disconnect numerous times.
  • Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports.
  • Positive Seal - no leaks. After tubing is inserted, seal is made.
  • Versatile - Buna-N O-Rings standard.
  • Secure Tube Retention - pulling on tubing only serves to tighten the connection.
  • Self Contained Assembly - no loose parts, brass body and insert.
  • Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench.
  • Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor.
  • Pipe Thread - NPTF with Teflon® based sealant pre-applied.
  • Not Lead Free
Design:
  • When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).
  • Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.
  • The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).
  • Pressure through the tube also serves to tighten the grip.
  • The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.
    		•
    Crossover Series:
    AQ64P MQ64 KQT 12-060 50-564 264OF 264PP 1164 AQ64 6540 3140
    Part Number Tube O.D A Body Size Approx. Weight
    (Lbs.)
    20025
    (20-025)     		1/8" 0.65" 0.31" 0.04
    20026
    (20-026)     		5/32" 0.67" 0.31" 0.04
    20027
    (20-027)     		3/16" 0.75" 0.37" 0.06
    20028
    (20-028)     		1/4" 0.92" 0.37" 0.09
    20031*
    (20-031)     		5/16" 0.89" 0.49" 0.10
    20029
    (20-029)     		3/8" 0.98" 0.50" 0.13
    20030
    (20-030)     		1/2" 1.16" 0.62" 0.24

    * Nickel Plated

    Dimension data can change without notice.
