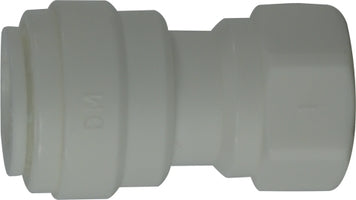

20035P (20-035P) Midland Push-In Tube Fitting - Female Connector - 1/4" Tube OD x 1/4" Female Pipe - Plastic

20035P by Midland | Push-In Tube Fitting | Connector | 1/4" Tube OD x 1/4" Female Pipe | Plastic

Save $0.68 Save $0.68
$4.38
$4.38 - $4.38
$4.38
$3.70
$3.70 - $3.70
$3.70

Midland Industries
Plastic Push-in Tube Fitting - Female Connector - Push-In Fitting x Female Pipe - Plastic

Inventory @ Manufacturers Warehouse: 409 Units
Specifications for Variant SKU: 20035P Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Female NPT
Material(s): POM
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 51, NSF 61, SK Zert
Applications:
  • Widely used in water purification, food/beverage and pneumatic systems.
  • Beyond water and food use, fittings can be used with air, gases, vacuum, & liquids.
Features:
  • All connections can be assembled & disassembled repeatedly.
  • Function & Quality : Provides quick and convenient assembly - saving time & expense. The ISO9001, 14001 registered quality system ensures customers a superior level of product quality. Defects are easily detectable and maintenance is easy with its easy dismantling for access.
  • Collet Design : Unique oval collet design is superior and more practical.
Specifications:
  • Manufactured from safe, non-toxic materials meeting the requirements of the US FDA, WRAS, ANSI/NSF-51, 61, and SK Zert.
Materials:
  • Grey Acetal Copolymer, also known as POM. Highly durable and resistant to fatigue and creep. It has high resistance to a wide range of organic & inorganic chemicals and detergents. Not recommended for use with strong acids or repeated exposure to strong oxidizers. (polypropylene may be subbed)
Notes:
  • Fittings are not recommended for use with liquids other than water and food or beverage products.
  • Do not use pipe dope or other liquid thread sealers. Use only Teflon tape to seal threaded connections.
  • After assembling a tube connection, tug with moderate force to check for proper gripping of the tube.
  • Before disassembling tube connections, always verify that pressure has been removed from the system.
Pressure:
Part Number Tube OD Female Pipe
20993P
(20-993P)		 1/4" 1/8"
20035P
(20-035P)		 1/4" 1/4"
20944P
(20-944P)		 3/8" 1/8"
20036P
(20-036P)		 3/8" 1/4"
