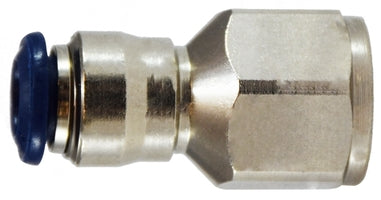

20038N (20-038N) Midland Push-In Fitting - Female Connector - 1/8" Tube OD x 1/4" Female NPTF - Nickel Plated Brass

20038N by Midland | Push-In Fitting | Connector | 1/8" Tube OD x 1/4" Female NPTF | Nickel Plated Brass

Save $0.94 Save $0.94
$8.43
$8.43 - $8.43
$8.43
$7.49
$7.49 - $7.49
$7.49

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Female Connector

Inventory @ Manufacturers Warehouse: 75 Units
Specifications for Variant SKU: 20038N Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Push-to-Connect, 1/4in Female NPTF
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
66PL 88030
Part Number Tube O.D. x Female NPTF A Hex Approx. Wt. Lbs.
20150N
(20-150N) 		1/8" x 1/8" 0.93" 0.51" 0.04
20038N
(20-038N) 		1/8" x 1/4" 1.14" 0.63" 0.04
20034N
(20-034N) 		1/4" x 1/8" 1.06" 0.51" 0.06
20035N
(20-035N) 		1/4" x 1/4" 1.26" 0.63" 0.09
20036N
(20-036N) 		3/8" x 1/4" 1.38" 0.71" 0.09
20037N
(20-037N) 		3/8" x 3/8" 1.38" 0.79" 0.12

Dimension data can change without notice.
