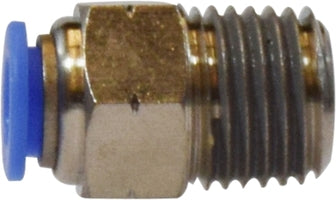

20050C (20-050C) Midland Push-In Fitting - Male Connector - 5/32" Tube OD x 1/8" Male NPT - Nickel Plated Brass

20050C by Midland | Push-In Fitting | Connector | 5/32" Tube OD x 1/8" Male NPT | Nickel Plated Brass

Save $2.53 Save $2.53
$6.32
$6.32 - $6.32
$6.32
$3.79
$3.79 - $3.79
$3.79

Midland Industries
Brass Fitting - Nickel Plated Brass Body Push-in Fitting - Male Connector

The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 53 Units
Specifications for Variant SKU: 20050C Midland
Shape (Orientation): Straight
Ends Configuration: 5/32in Push-to-Connect, 1/8in Male NPT
Material(s): Nickel Plated Brass
Seal Material(s): NBR

SPECIFICATIONS

Fluid Admitted: Air Working Pressure Range: 0-150 PSI (10 BAR)
Min. Burst Pressure: 340 PSI (23 BAR) Working Temperature Range: 0°F ~160°F
Tolerance: +/- .02 on all dimensions.
Materials of Construcion
1 Body Composite Polyacetal (Hemopolymer, Copolymer)
2 Body Brass
3 Tube Release Acetal Resin
4 Retainer Brass
5 Gripper Ring Stainless Steel
6 Spacer Brass
7 O-Ring NBR 70
8 Threads Brass with White Sealant
Crossover Series:
PQ68P
Part Number Tube O.D. x Male NPT Approx. Weight
(Lbs.)
20050C
(20-050C)		 5/32" x 1/8" 0.02
20053C
(20-053C)		 1/4" x 10-32" 0.02
20054C
(20-054C)		 1/4" x 1/8" 0.02
20055C
(20-055C)		 1/4" x 1/4" 0.02
20056C
(20-056C)		 1/4" x 3/8" 0.04
20530C
(20-530C)		 5/16" x 1/8" 0.05
20531C
(20-531C)		 5/16" x 1/4" 0.05
20057C
(20-057C)		 3/8" x 1/8" 0.05
20058C
(20-058C)		 3/8" x 1/4" 0.06
20059C
(20-059C)		 3/8" x 3/8" 0.06
20062C
(20-062C)		 3/8" x 1/2" 0.08
20060C
(20-060C)		 1/2" x 1/4" 0.06
20061C
(20-061C)		 1/2" x 3/8" 0.08
20063C
(20-063C)		 1/2" x 1/2" 0.10

Dimension Data can change without notice.
