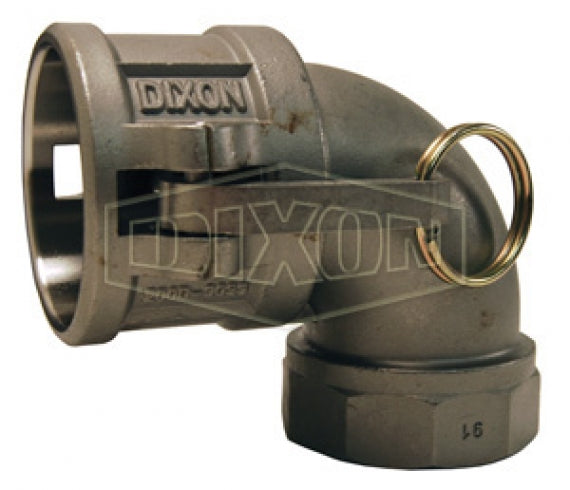

200D-90SS by Dixon Valve | Cam & Groove Coupling | 90° Elbow | Type D | 2" Coupler x 2" Female NPT | 316 Stainless Steel

Save $11.34

$159.45

$159.45 - $159.45

$159.45

$148.11

$148.11 - $148.11

$148.11

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type D | Coupler x Female NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 200D-90SS Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 2in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
-	-	100D-90SS	1"	250 PSI
-	125D-90BR	-	1-1/4"	250 PSI
150D-90AL	150D-90BR	-	1-1/2"	250 PSI
200D-90AL	200D-90BR	200D-90SS	2"	250 PSI
300D-90AL	-	300D-90SS	3"	125 PSI
400D-90AL	-	400D-90SS*	4"	100 PSI
AD90400EZ (EZ Boss-Lock)	-	-	4"	100 PSI
600D-90AL	-	-	6"	75 PSI

* Parts are produced as a welded fabrication.
