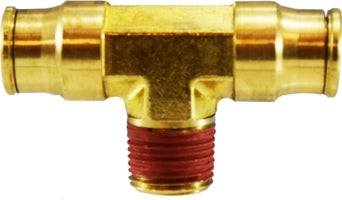

20112 (20-112) by Midland | Push-In Fitting | Fixed Male | 1/8" Tube OD x 1/8" Male NPTF | Tee | Brass

20112 (20-112) by Midland | Push-In Fitting | Fixed Male | 1/8" Tube OD x 1/8" Male NPTF | Tee | Brass

Save $6.45 Save $6.45
$16.12
$16.12 - $16.12
$16.12
$9.67
$9.67 - $9.67
$9.67

Midland Industries
Brass Fitting - Push-In Fitting - Fixed Male Branch Tee - Brass
Specifications for Variant SKU: 20112 Midland
Shape (Orientation): Tee
Ends Configuration: 1/8in Push-to-Connect, 1/8in Push-to-Connect, 1/8in Male NPTF, Some Ends Match
Material(s): Brass
Features:
  • Temperature Range: -10°F to 200°F
  • Tolerance: +/- .02 on all dimensions.
  • Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
  • Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required.
  • Reuseable - connect and disconnect numerous times.
  • Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports.
  • Positive Seal - no leaks. After tubing is inserted, seal is made.
  • Versatile - Buna-N O-Rings standard.
  • Secure Tube Retention - pulling on tubing only serves to tighten the connection.
  • Self Contained Assembly - no loose parts, brass body and insert.
  • Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench.
  • Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor.
  • Pipe Thread - NPTF with Teflon® based sealant pre-applied.
  • Not Lead Free
Design:
  • When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).
  • Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.
  • The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).
  • Pressure through the tube also serves to tighten the grip.
  • The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.
    		•
    Crossover Series:
    AQ72P (AQ72-P) MQ72
    Part Number Tube O.D x Male NPTF A B Body Size Approx. Weight
    (Lbs.)
    20112
    (20-112)     		1/8" x 1/8" 0.69" 0.72" 0.31" 0.04
    20115
    (20-115)     		1/4" x 1/8" 0.92" 0.74" 0.37" 0.12
    20116
    (20-116)     		1/4" x 1/4" 0.91" 0.91" 0.43" 0.10
    20117
    (20-117)     		3/8" x 1/8" 0.98" 0.80" 0.50" 0.08
    20118
    (20-118)     		3/8" x 1/4" 0.98" 0.97" 0.50" 0.12
    20119
    (20-119)     		3/8" x 3/8" 0.98" 0.97" 0.50" 0.14
    20120
    (20-120)     		1/2" x 3/8" 1.16" 1.05" 0.62" 0.18

    Dimension data can change without notice.

    Midland Industries

    Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
