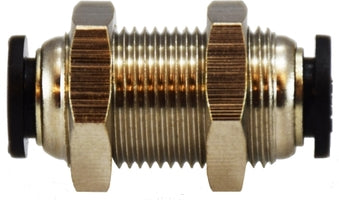

20127C (20-127C) Midland Push-In Fitting - Bulkhead Union - 1/4" Tube OD - Composite Body

20127C by Midland | Push-In Fitting | Bulkhead Union | 1/4" Tube OD | Composite Body

Save $4.69 Save $4.69
$11.73
$11.73 - $11.73
$11.73
$7.04
$7.04 - $7.04
$7.04

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Bulkhead Union

The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.
Specifications for Variant SKU: 20127C Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Plastic, Brass
Seal Material(s): NBR

SPECIFICATIONS

Fluid Admitted: Air Working Pressure Range: 0-150 PSI (10 BAR)
Min. Burst Pressure: 340 PSI (23 BAR) Working Temperature Range: 0°F ~160°F
Tolerance: +/- .02 on all dimensions.
Materials of Construcion
1 Body Composite Polyacetal (Hemopolymer, Copolymer)
2 Body Brass
3 Tube Release Acetal Resin
4 Retainer Brass
5 Gripper Ring Stainless Steel
6 Spacer Brass
7 O-Ring NBR 70
8 Threads Brass with White Sealant
Crossover Series:
PQ82P
Part Number Tube O.D. x Male NPT Approx. Weight
(Lbs.)
20127C
(20-127C)		 1/4" 0.04
20128C
(20-128C)		 3/8" 0.06
20129C
(20-129C)		 1/2" 0.10

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
