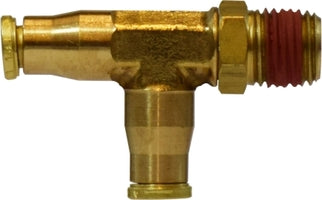

20162 (20-162) Midland Push-In Fitting - Swivel Male Run Tee - 1/4" Tube OD x 1/8" Male NPTF - Brass

20162 by Midland | Push-In Fitting | Swivel Run | 1/4" Tube OD x 1/8" Male NPTF | Tee | Brass

Save $5.41

$13.52

$13.52 - $13.52

$13.52

$8.11

$8.11 - $8.11

$8.11

Midland Industries
Brass Fitting - Push-In Fitting - Swivel Male Run Tee - Brass

Specifications for Variant SKU: 20162 Midland
Shape (Orientation):	Tee
Ends Configuration:	1/4in Push-to-Connect, 1/8in Male NPTF, 1/4in Push-to-Connect, Some Ends Match
Material(s):	Brass

Features:
Temperature Range: -10°F to 200°F Tolerance: +/- .02 on all dimensions. Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings. Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required. Reuseable - connect and disconnect numerous times. Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports. Positive Seal - no leaks. After tubing is inserted, seal is made. Versatile - Buna-N O-Rings standard. Secure Tube Retention - pulling on tubing only serves to tighten the connection. Self Contained Assembly - no loose parts, brass body and insert. Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench. Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor. Pipe Thread - NPTF with Teflon® based sealant pre-applied. Not Lead Free

Design:

When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).

Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.

The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).

Pressure through the tube also serves to tighten the grip.

The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.

Crossover Series:
AQ71PS	MQ71S	AQ71-PS	56440	3103	171PL	KQY	12-468	50-571	271-OFS	11715


Part Number	Tube O.D x Male NPTF	A	B	Hex	Approx. Weight (Lbs.)
20160 (20-160)	1/8" x 1/8"	0.65"	0.86"	0.43"	0.08
20161 (20-161)	5/32" x 1/8"	0.67"	1.04"	0.43"	0.09
20162 (20-162)	1/4" x 1/8"	0.92"	1.04"	0.44"	0.09
20163 (20-163)	1/4" x 1/4"	0.92"	1.13"	0.56"	0.11
20164 (20-164)	3/8" x 1/4"	0.94"	1.19"	0.56"	0.11
20165 (20-165)	3/8" x 3/8"	0.96"	1.24"	0.50"	0.12
20174 (20-174)	1/2" x 1/4"	1.12"	1.18"	0.51"	0.16
20166 (20-166)	1/2" x 3/8"	1.14"	1.31"	0.68"	0.14
20167 (20-167)	1/2" x 1/2"	1.14"	1.61"	0.87"	0.16

Dimension data can change without notice.
