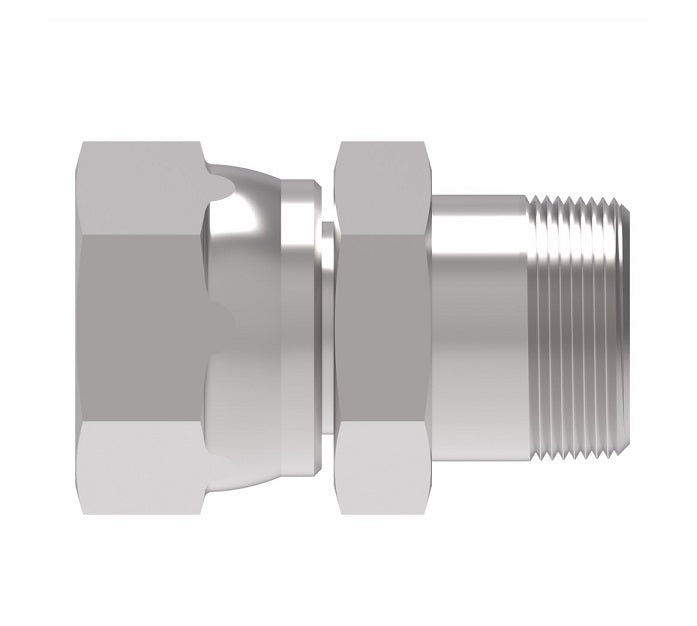

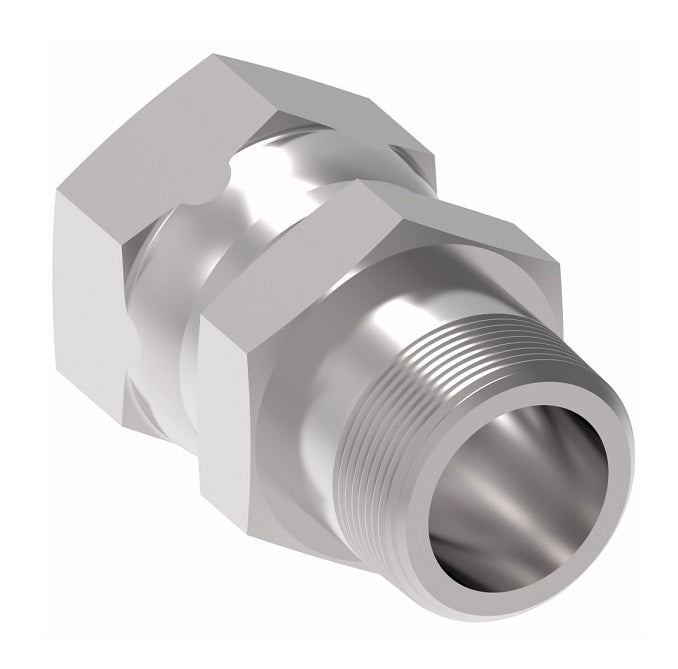

2018-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -12 Male NPTF x -12 Female JIC | Steel

2018-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -12 Male NPTF x -12 Female JIC | Steel

Name: 2018-12-12S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -12 Male NPTF x -12 Female JIC | Steel
Brand: Danfoss/Eaton
SKU: 2018-12-12S Danfoss
Price: 16.04 USD
Availability: InStock

$16.04 - $16.04

$16.04

$16.04 - $16.04

$16.04

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Swivel Adapter
Male NPTF x Female JIC
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2018-12-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF, 3/4in Female JIC
Material(s):	Steel


Part Number Steel	Tube O.D.	Thread P	Thread T	A
2018-2-4S	0.25"	1/8-27	7/16-20	1.32"
2018-4-4S	0.25"	1/4-18	7/16-20	1.50"
2018-4-5S	-	-	-	-
2018-4-6S	0.38"	1/4-18	9/16-18	1.59"
2018-6-6S	0.38"	3/8-18	9/16-18	1.59"
2018-6-8S	0.50"	3/8-18	3/4-16	1.74"
2018-6-10S	0.63"	3/8-18	7/8-14	1.92"
2018-8-8S	0.50"	1/2-14	3/4-16	1.93"
2018-8-10S	-	-	-	-
2018-8-12S	-	-	-	-
2018-12-12S	0.75"	3/4-14	1-1/16-12	2.15"
2018-12-16S	-	-	-	-
2018-16-16S	1.00"	1-11-1/2	1-5/16-12	2.54"
2018-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.78"
