2018-20-20S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -20 Male NPTF x -20 Female JIC | Steel

2018-20-20S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -20 Male NPTF x -20 Female JIC | Steel

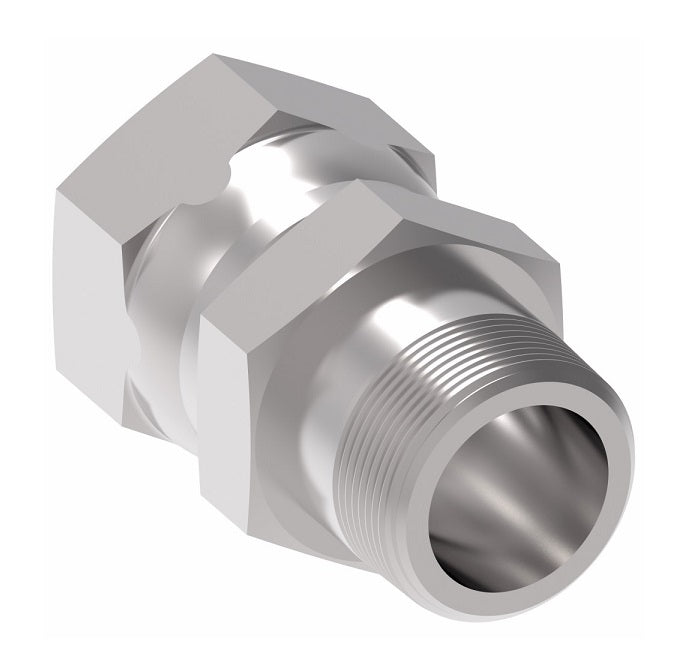

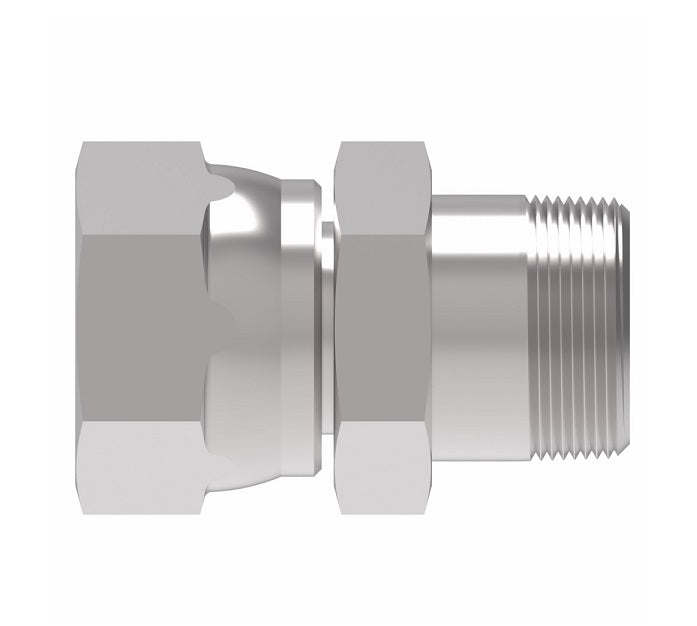

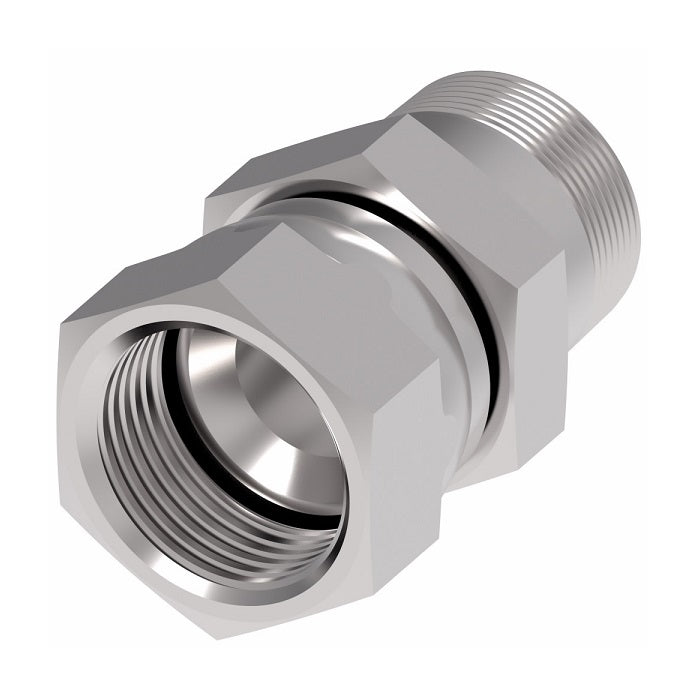

Name: 2018-20-20S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -20 Male NPTF x -20 Female JIC | Steel
Brand: Danfoss/Eaton
SKU: 2018-20-20S Danfoss
Price: 54.55 USD
Availability: InStock

$54.55 - $54.55

$54.55

$54.55 - $54.55

$54.55

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Swivel Adapter
Male NPTF x Female JIC
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2018-20-20S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male NPTF, 1-1/4in Female JIC
Material(s):	Steel


Part Number Steel	Tube O.D.	Thread P	Thread T	A
2018-2-4S	0.25"	1/8-27	7/16-20	1.32"
2018-4-4S	0.25"	1/4-18	7/16-20	1.50"
2018-4-5S	-	-	-	-
2018-4-6S	0.38"	1/4-18	9/16-18	1.59"
2018-6-6S	0.38"	3/8-18	9/16-18	1.59"
2018-6-8S	0.50"	3/8-18	3/4-16	1.74"
2018-6-10S	0.63"	3/8-18	7/8-14	1.92"
2018-8-8S	0.50"	1/2-14	3/4-16	1.93"
2018-8-10S	-	-	-	-
2018-8-12S	-	-	-	-
2018-12-12S	0.75"	3/4-14	1-1/16-12	2.15"
2018-12-16S	-	-	-	-
2018-16-16S	1.00"	1-11-1/2	1-5/16-12	2.54"
2018-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.78"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
