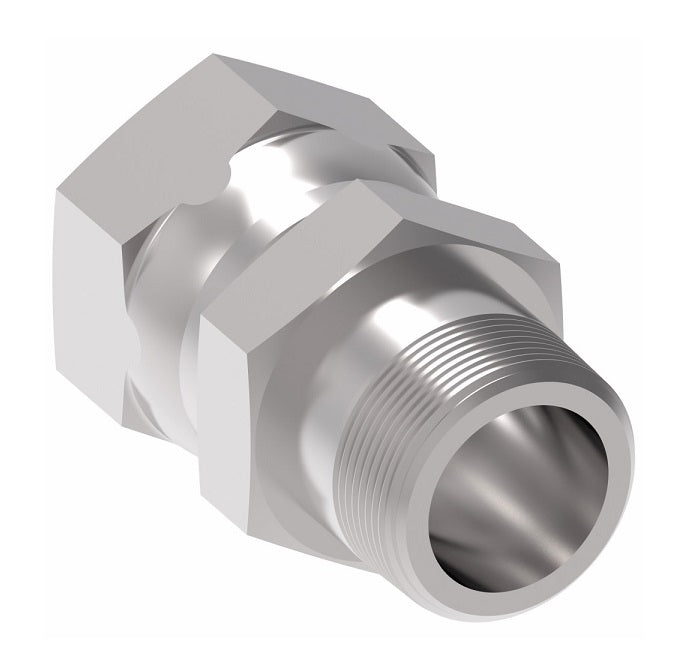

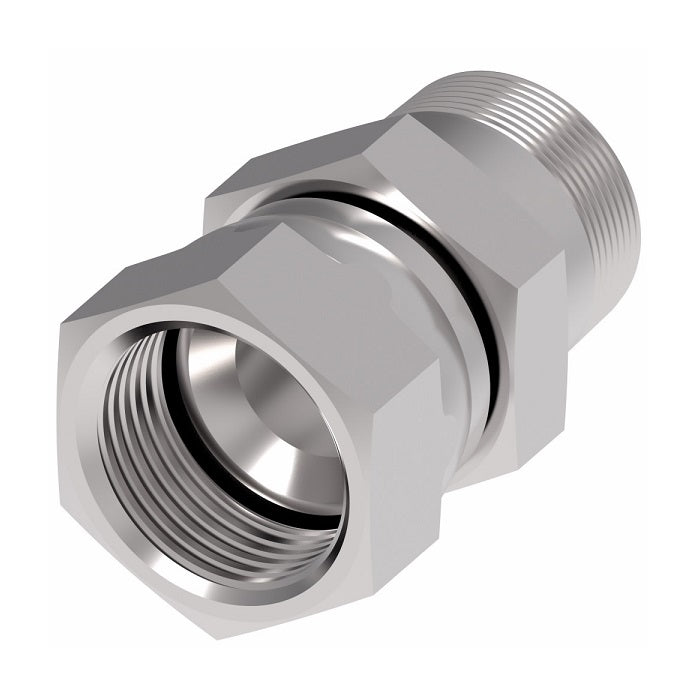

2018-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -05 Female JIC | Steel
2018-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -05 Female JIC | Steel
2018-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -05 Female JIC | Steel
2018-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -05 Female JIC | Steel

2018-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -05 Female JIC | Steel

$17.52 - $17.52
$17.52
$17.52 - $17.52
$17.52

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Swivel Adapter
Male NPTF x Female JIC
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2018-4-5S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 5/16in Female JIC
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread P Thread T A
2018-2-4S 0.25" 1/8-27 7/16-20 1.32"
2018-4-4S 0.25" 1/4-18 7/16-20 1.50"
2018-4-5S - - - -
2018-4-6S 0.38" 1/4-18 9/16-18 1.59"
2018-6-6S 0.38" 3/8-18 9/16-18 1.59"
2018-6-8S 0.50" 3/8-18 3/4-16 1.74"
2018-6-10S 0.63" 3/8-18 7/8-14 1.92"
2018-8-8S 0.50" 1/2-14 3/4-16 1.93"
2018-8-10S - - - -
2018-8-12S - - - -
2018-12-12S 0.75" 3/4-14 1-1/16-12 2.15"
2018-12-16S - - - -
2018-16-16S 1.00" 1-11-1/2 1-5/16-12 2.54"
2018-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.78"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
