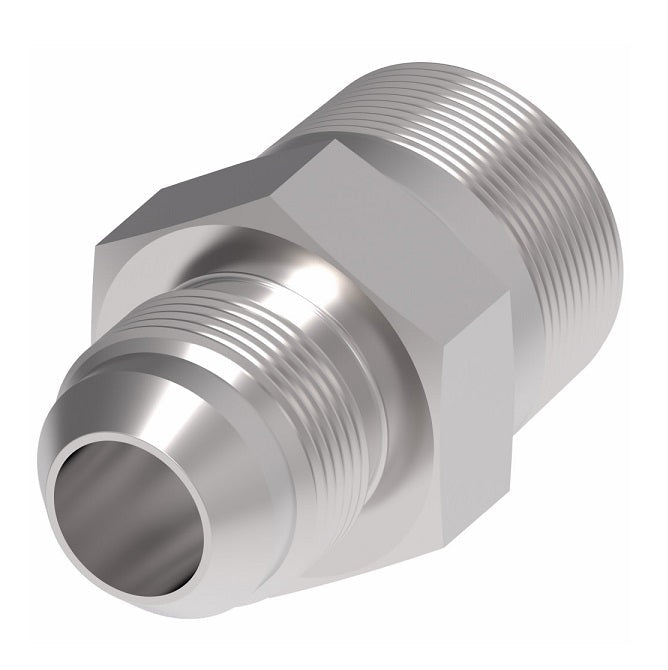

2021-8-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -08 Male NPTF x -04 Male SAE 37° JIC Flare | Steel
2021-8-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -08 Male NPTF x -04 Male SAE 37° JIC Flare | Steel
2021-8-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -08 Male NPTF x -04 Male SAE 37° JIC Flare | Steel
2021-8-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -08 Male NPTF x -04 Male SAE 37° JIC Flare | Steel

2021-8-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -08 Male NPTF x -04 Male SAE 37° JIC Flare | Steel

$4.22 - $4.22
$4.22
$4.22 - $4.22
$4.22

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male SAE 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2021-8-4S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070102
Steel Part Number Brass Part Number Stainless Steel Part Number Tube O.D. Threads P Threads T A
2021-2-2S - - 0.13" 1/8-27 5/16-24 1.11"
2021-2-3S - - 0.19" 1/8-27 3/8-24 1.14"
2021-2-4S 2021-2-4B 259-2021-2-4 0.25" 1/8-27 7/16-20 1.22"
2021-2-5S - - 0.31" 1/8-27 1/2-20 1.22"
2021-2-6S 2021-2-6B - 0.38" 1/8-27 9/16-18 1.24"
2021-2-8S - - 0.50" 1/8-27 3/4-16 1.34"
2021-4-4S 2021-4-4B 259-2021-4-4 0.25" 1/4-18 7/16-20 1.42"
2021-4-5S - 259-2021-4-5 0.31" 1/4-18 1/2-20 1.42"
2021-4-6S 2021-4-6B 259-2021-4-6 0.38" 1/4-18 9/16-18 1.43"
2021-4-8S 2021-4-8B 259-2021-4-8 0.50" 1/4-18 3/4-16 1.53"
2021-6-4S 2021-6-4B 259-2021-6-4 0.25" 3/8-18 7/16-20 1.42"
2021-6-5S - - 0.31" 3/8-18 1/2-20 1.42"
2021-6-6S 2021-6-6B 259-2021-6-6 0.38" 3/8-18 9/16-18 1.43"
2021-6-8S 2021-6-8B 259-2021-6-8 0.50" 3/8-18 3/4-16 1.53"
2021-6-10S 2021-6-10B 259-2021-6-10 0.63" 3/8-18 7/8-14 1.70"
2021-6-12S - 0.75" 3/8-18 1-1/16-12 1.75"
2021-8-4S - - 0.25" 1/2-14 7/16-20 1.68"
2021-8-6S 259-2021-8-6 0.38" 1/2-14 9/16-18 1.69"
2021-8-8S 2021-8-8B 259-2021-8-8 0.50" 1/2-14 3/4-16 1.79"
2021-8-10S 2021-8-10B 259-2021-8-10 0.63" 1/2-14 7/8-14 1.89"
2021-8-12S 2021-8-12B 259-2021-8-12 0.75" 1/2-14 11/16-12 2.06"
2021-8-16S - - 1.00" 1/2-14 1-5/16-12 2.11"
2021-12-6S - - 0.38" 3/4-14 9/16-18 1.75"
2021-12-8S 2021-12-8B 259-2021-12-8 0.50" 3/4-14 3/4-16 1.85"
2021-12-10S 2021-12-10B 259-2021-12-10 0.63" 3/4-14 7/8-14 1.95"
2021-12-12S 2021-12-12B 259-2021-12-12 0.75" 3/4-14 11/16-12 2.06"
2021-12-14S - - 0.88" 3/4-14 1-3/16-12 2.09"
2021-12-16S 2021-12-16B 259-2021-12-16 1.00" 3/4-14 1-5/16-12 2.11"
2021-16-10S - - 0.63" 1-11-1/2 7/8-14 2.15"
2021-16-12S 2021-16-12B - 0.75" 1-11-1/2 1-1/16-12 2.25"
2021-16-16S 2021-16-16B 259-2021-16-16 1.00" 1-11-1/2 1-5/16-12 2.30"
2021-16-20S 2021-16-20B - 1.25" 1-11-1/2 1-5/8-12 2.42"
2021-16-24S - - 1.50" 1-11-1/2 1-7/8-12 2.62"
2021-16-32S - - 2.00" 1-11-1/2 2-1/2-12 3.02"
2021-20-12S - - 0.75" 1-1/4-11-1/2 1-1/16-12 2.36"
2021-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.40"
2021-20-20S 2021-20-20B - 1.25" 1-1/4-11-1/2 1-5/8-12 2.45"
2021-20-24S - 259-2021-20-24 1.50" 1-1/4-11-1/2 1-7/8-12 2.65"
2021-20-32S - - 2.00" 1-1/4-11-1/2 2-1/2-12 3.05"
2021-24-12S - - 0.75" 1-1/2-11-1/2 1-1/16-12 2.46"
2021-24-16S - - 1.00" 1-1/2-11-1/2 1-5/16-12 2.51"
2021-24-20S - - 1.25" 1-1/2-11-1/2 1-5/8-12 2.55"
2021-24-24S 2021-24-24B 259-2021-24-24 1.50" 1-1/2-11-1/2 1-7/8-12 2.68"
2021-24-32S 2021-24-32B - 2.00" 1-1/2-11-1/2 2-1/2-12 3.08"
2021-32-32S 2021-32-32B - 2.00" 2-11-1/2 2-1/2-12 3.11"
2021-40-40S - - 2.50" 2-1/2-8 3-12 3.38"
