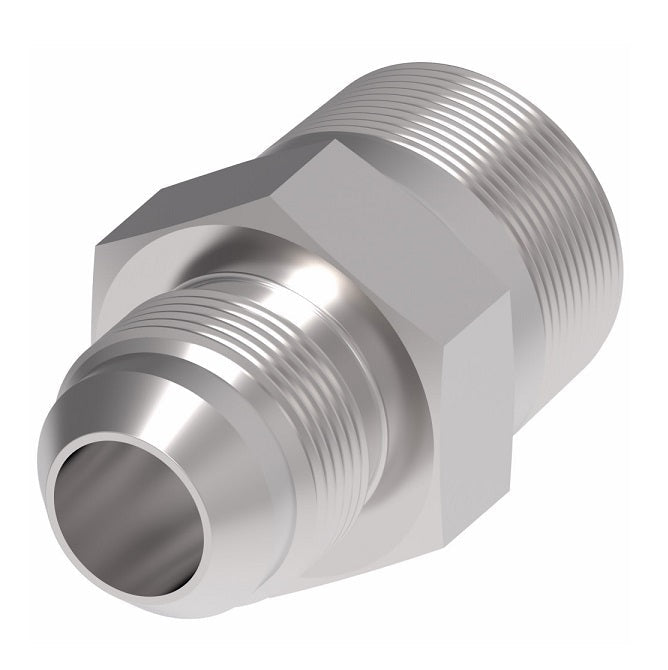

259-2021-4-6 Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -04 Male NPTF x -06 Male SAE 37° JIC Flare | Stainless Steel
259-2021-4-6 Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -04 Male NPTF x -06 Male SAE 37° JIC Flare | Stainless Steel
259-2021-4-6 Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -04 Male NPTF x -06 Male SAE 37° JIC Flare | Stainless Steel
259-2021-4-6 Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -04 Male NPTF x -06 Male SAE 37° JIC Flare | Stainless Steel

259-2021-4-6 Aeroquip by Danfoss | External Pipe/37° JIC Flare Adapter | -04 Male NPTF x -06 Male SAE 37° JIC Flare | Stainless Steel

$10.28 - $10.28
$10.28
$10.28 - $10.28
$10.28

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male SAE 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 259-2021-4-6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 3/8in Male JIC
Material(s): Stainless Steel
Specifications:
  • Ref. SAE 070102
Steel Part Number Brass Part Number Stainless Steel Part Number Tube O.D. Threads P Threads T A
2021-2-2S - - 0.13" 1/8-27 5/16-24 1.11"
2021-2-3S - - 0.19" 1/8-27 3/8-24 1.14"
2021-2-4S 2021-2-4B 259-2021-2-4 0.25" 1/8-27 7/16-20 1.22"
2021-2-5S - - 0.31" 1/8-27 1/2-20 1.22"
2021-2-6S 2021-2-6B - 0.38" 1/8-27 9/16-18 1.24"
2021-2-8S - - 0.50" 1/8-27 3/4-16 1.34"
2021-4-4S 2021-4-4B 259-2021-4-4 0.25" 1/4-18 7/16-20 1.42"
2021-4-5S - 259-2021-4-5 0.31" 1/4-18 1/2-20 1.42"
2021-4-6S 2021-4-6B 259-2021-4-6 0.38" 1/4-18 9/16-18 1.43"
2021-4-8S 2021-4-8B 259-2021-4-8 0.50" 1/4-18 3/4-16 1.53"
2021-6-4S 2021-6-4B 259-2021-6-4 0.25" 3/8-18 7/16-20 1.42"
2021-6-5S - - 0.31" 3/8-18 1/2-20 1.42"
2021-6-6S 2021-6-6B 259-2021-6-6 0.38" 3/8-18 9/16-18 1.43"
2021-6-8S 2021-6-8B 259-2021-6-8 0.50" 3/8-18 3/4-16 1.53"
2021-6-10S 2021-6-10B 259-2021-6-10 0.63" 3/8-18 7/8-14 1.70"
2021-6-12S - 0.75" 3/8-18 1-1/16-12 1.75"
2021-8-4S - - 0.25" 1/2-14 7/16-20 1.68"
2021-8-6S 259-2021-8-6 0.38" 1/2-14 9/16-18 1.69"
2021-8-8S 2021-8-8B 259-2021-8-8 0.50" 1/2-14 3/4-16 1.79"
2021-8-10S 2021-8-10B 259-2021-8-10 0.63" 1/2-14 7/8-14 1.89"
2021-8-12S 2021-8-12B 259-2021-8-12 0.75" 1/2-14 11/16-12 2.06"
2021-8-16S - - 1.00" 1/2-14 1-5/16-12 2.11"
2021-12-6S - - 0.38" 3/4-14 9/16-18 1.75"
2021-12-8S 2021-12-8B 259-2021-12-8 0.50" 3/4-14 3/4-16 1.85"
2021-12-10S 2021-12-10B 259-2021-12-10 0.63" 3/4-14 7/8-14 1.95"
2021-12-12S 2021-12-12B 259-2021-12-12 0.75" 3/4-14 11/16-12 2.06"
2021-12-14S - - 0.88" 3/4-14 1-3/16-12 2.09"
2021-12-16S 2021-12-16B 259-2021-12-16 1.00" 3/4-14 1-5/16-12 2.11"
2021-16-10S - - 0.63" 1-11-1/2 7/8-14 2.15"
2021-16-12S 2021-16-12B - 0.75" 1-11-1/2 1-1/16-12 2.25"
2021-16-16S 2021-16-16B 259-2021-16-16 1.00" 1-11-1/2 1-5/16-12 2.30"
2021-16-20S 2021-16-20B - 1.25" 1-11-1/2 1-5/8-12 2.42"
2021-16-24S - - 1.50" 1-11-1/2 1-7/8-12 2.62"
2021-16-32S - - 2.00" 1-11-1/2 2-1/2-12 3.02"
2021-20-12S - - 0.75" 1-1/4-11-1/2 1-1/16-12 2.36"
2021-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.40"
2021-20-20S 2021-20-20B - 1.25" 1-1/4-11-1/2 1-5/8-12 2.45"
2021-20-24S - 259-2021-20-24 1.50" 1-1/4-11-1/2 1-7/8-12 2.65"
2021-20-32S - - 2.00" 1-1/4-11-1/2 2-1/2-12 3.05"
2021-24-12S - - 0.75" 1-1/2-11-1/2 1-1/16-12 2.46"
2021-24-16S - - 1.00" 1-1/2-11-1/2 1-5/16-12 2.51"
2021-24-20S - - 1.25" 1-1/2-11-1/2 1-5/8-12 2.55"
2021-24-24S 2021-24-24B 259-2021-24-24 1.50" 1-1/2-11-1/2 1-7/8-12 2.68"
2021-24-32S 2021-24-32B - 2.00" 1-1/2-11-1/2 2-1/2-12 3.08"
2021-32-32S 2021-32-32B - 2.00" 2-11-1/2 2-1/2-12 3.11"
2021-40-40S - - 2.50" 2-1/2-8 3-12 3.38"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
