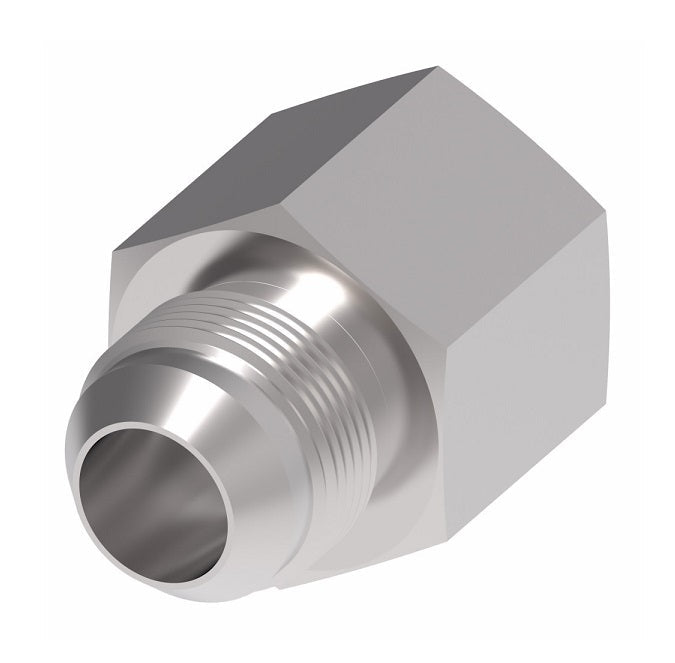

2022-12-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -12 Female NPTF x -10 Male SAE 37° Flare | Steel
2022-12-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -12 Female NPTF x -10 Male SAE 37° Flare | Steel
2022-12-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -12 Female NPTF x -10 Male SAE 37° Flare | Steel
2022-12-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -12 Female NPTF x -10 Male SAE 37° Flare | Steel

2022-12-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -12 Female NPTF x -10 Male SAE 37° Flare | Steel

$32.18 - $32.18
$32.18
$32.18 - $32.18
$32.18

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Adapter
Female NPTF x Male SAE 37° Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2022-12-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF, 5/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070103
Part Number
Steel		 Part Number
Brass		 Part Number
Stainless Steel		 Tube O.D. Thread P Thread T A
2022-2-2S - - 0.13" 1/8-27 5/16-24 1.12"
2022-2-3S - - 0.19" 1/8-27 3/8-24 1.13"
2022-2-4S - - 0.25" 1/8-27 7/16-20 1.19"
2022-2-5S - - 0.31" 1/8-27 1/2-20 1.17"
2022-4-3S - - 0.19" 1/4-18 3/8-24 1.32"
2022-4-4S - 259-2022-4-4 0.25" 1/4-18 7/16-20 1.39"
2022-4-5S - - 0.31" 1/4-18 1/2-20 1.39"
2022-4-6S 2022-4-6B - 0.38" 1/4-18 9/16-18 1.40"
2022-4-8S - - 0.50" 1/4-18 3/4-16 1.55"
2022-6-6S - 259-2022-6-6 0.38" 3/8-18 9/16-18 1.46"
2022-6-8S - 259-2022-6-8 0.50" 3/8-18 3/4-16 1.56"
2022-6-10S - - - - - -
2022-8-4S - - 0.25" 1/2-14 7/16-20 1.68"
2022-8-6S - - 0.38" 1/2-14 9/16-18 1.69"
2022-8-8S - 259-2022-8-8 0.50" 1/2-14 3/4-16 1.79"
2022-8-10S - - 0.63" 1/2-14 7/8-14 1.89"
2022-8-12S - - 0.75" 1/2-14 1-1/16-12 2.05"
2022-12-8S - - 0.50" 3/4-14 3/4-16 1.85"
2022-12-10S - - 0.63" 3/4-14 7/8-14 1.95"
2022-12-12S 2022-12-12B - 0.75" 3/4-14 1-1/16-12 2.06"
2022-12-16S - - 1.00" 3/4-14 1-5/16-12 2.12"
2022-16-12S - - 0.75" 1-11-1/2 1-1/16-12 2.30"
2022-16-16S 2022-16-16B 259-2022-16-16 1.00" 1-11-1/2 1-5/16-12 2.35"
2022-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.44"
2022-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 2.49"
2022-24-24S - - 1.50" 1-1/2-11-1/2 1-7/8-12 2.62"
2022-32-32S - - 2.00" 2-11-1/2 2-11-1/2 2.97"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
