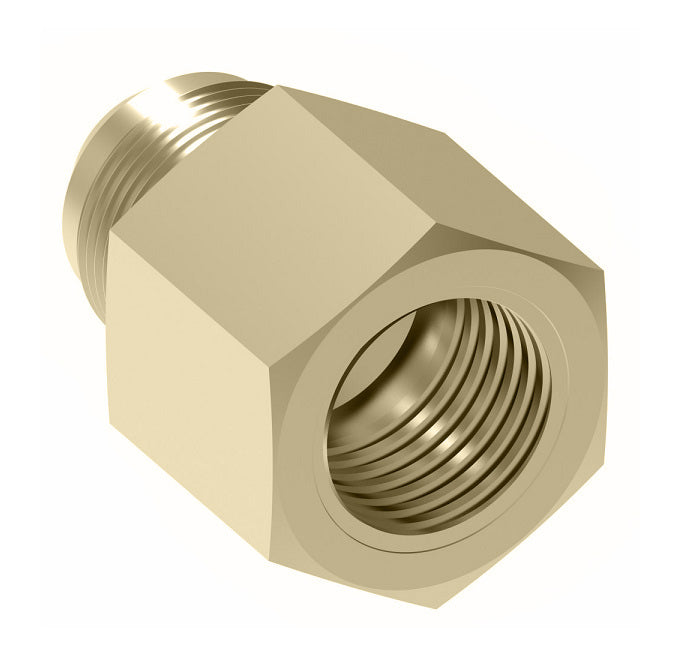

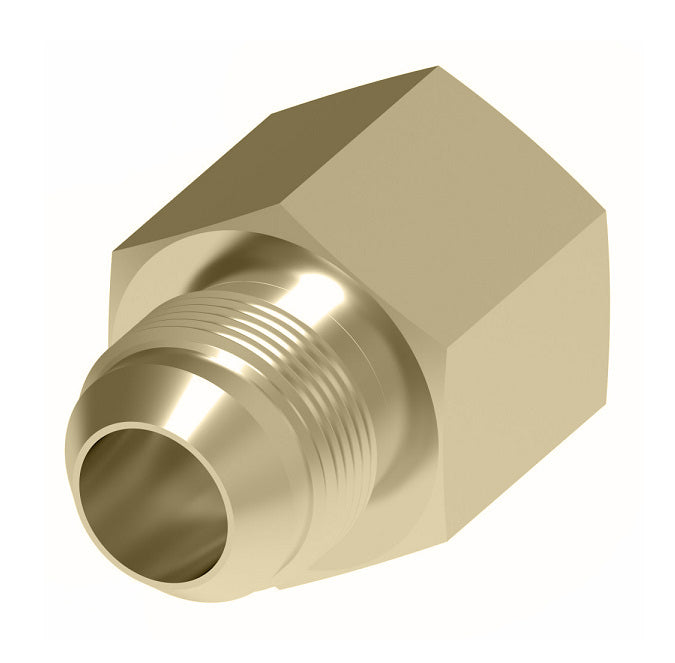

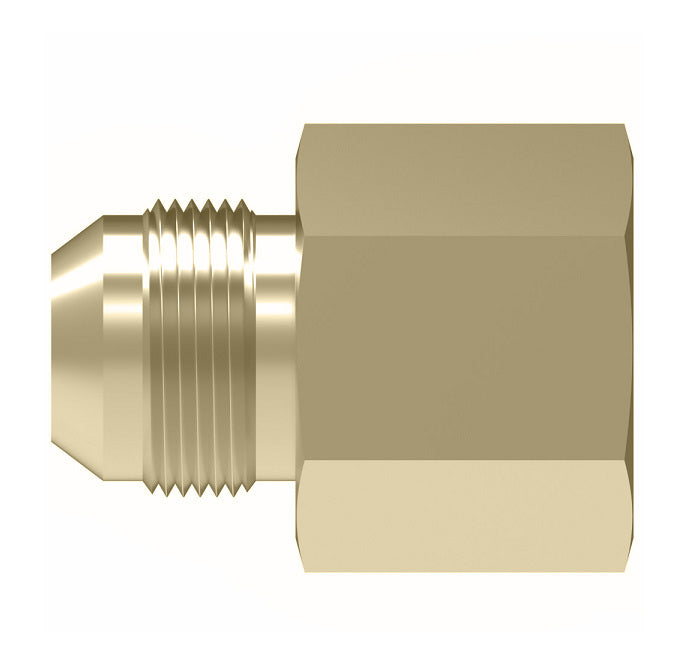

2022-12-12B Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -12 Female NPTF x -12 Male SAE 37° Flare | Brass

Save $9.02 Save $9.02
Original price $90.19
Original price $90.19 - Original price $90.19
Original price $90.19
Current price $81.17
$81.17 - $81.17
Current price $81.17

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Adapter
Female NPTF x Male SAE 37° Flare
Straight

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: 2022-12-12B Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF X 3/4in Male JIC
Material(s): Brass
Specifications:
  • Ref. SAE 070103
Part Number
Steel
Part Number
Brass
Part Number
Stainless Steel
Tube O.D. Thread P Thread T A
2022-2-2S - - 0.13" 1/8-27 5/16-24 1.12"
2022-2-3S - - 0.19" 1/8-27 3/8-24 1.13"
2022-2-4S - - 0.25" 1/8-27 7/16-20 1.19"
2022-2-5S - - 0.31" 1/8-27 1/2-20 1.17"
2022-4-3S - - 0.19" 1/4-18 3/8-24 1.32"
2022-4-4S 2022-4-4B 259-2022-4-4 0.25" 1/4-18 7/16-20 1.39"
2022-4-5S - - 0.31" 1/4-18 1/2-20 1.39"
2022-4-6S 2022-4-6B - 0.38" 1/4-18 9/16-18 1.40"
2022-4-8S - - 0.50" 1/4-18 3/4-16 1.55"
2022-6-6S 2022-6-6B 259-2022-6-6 0.38" 3/8-18 9/16-18 1.46"
2022-6-8S - 259-2022-6-8 0.50" 3/8-18 3/4-16 1.56"
2022-6-10S - - - - - -
2022-8-4S - - 0.25" 1/2-14 7/16-20 1.68"
2022-8-6S - - 0.38" 1/2-14 9/16-18 1.69"
2022-8-8S - 259-2022-8-8 0.50" 1/2-14 3/4-16 1.79"
2022-8-10S - - 0.63" 1/2-14 7/8-14 1.89"
2022-8-12S - - 0.75" 1/2-14 1-1/16-12 2.05"
2022-12-8S - - 0.50" 3/4-14 3/4-16 1.85"
2022-12-10S - - 0.63" 3/4-14 7/8-14 1.95"
2022-12-12S 2022-12-12B - 0.75" 3/4-14 1-1/16-12 2.06"
2022-12-16S - - 1.00" 3/4-14 1-5/16-12 2.12"
2022-16-12S - - 0.75" 1-11-1/2 1-1/16-12 2.30"
2022-16-16S 2022-16-16B 259-2022-16-16 1.00" 1-11-1/2 1-5/16-12 2.35"
2022-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.44"
2022-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 2.49"
2022-24-24S 2022-24-24B - 1.50" 1-1/2-11-1/2 1-7/8-12 2.62"
2022-32-32S - - 2.00" 2-11-1/2 2-11-1/2 2.97"
