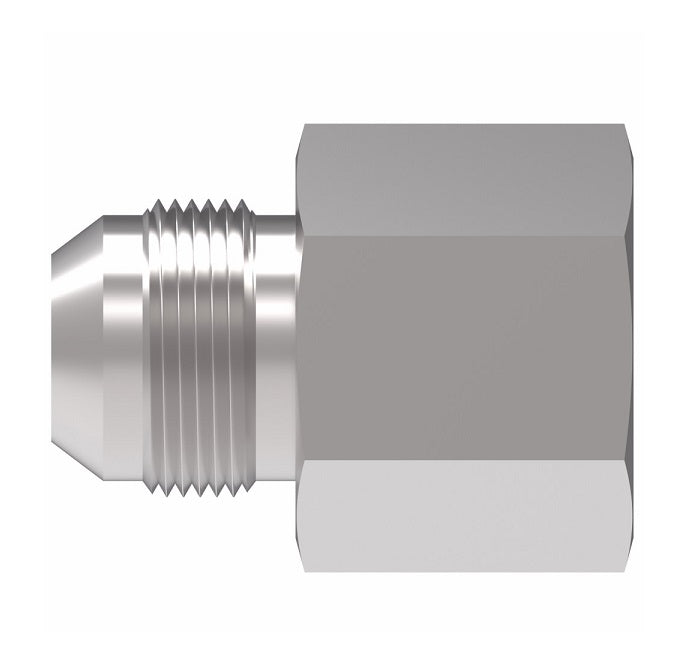

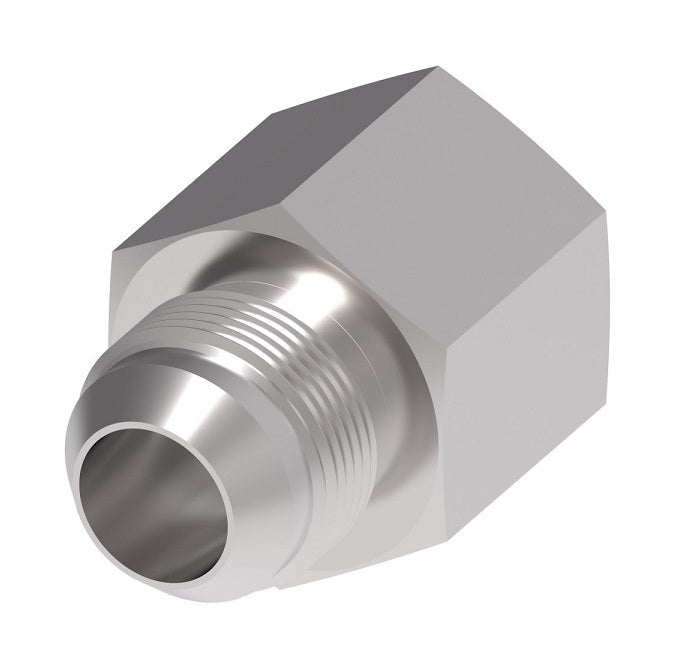

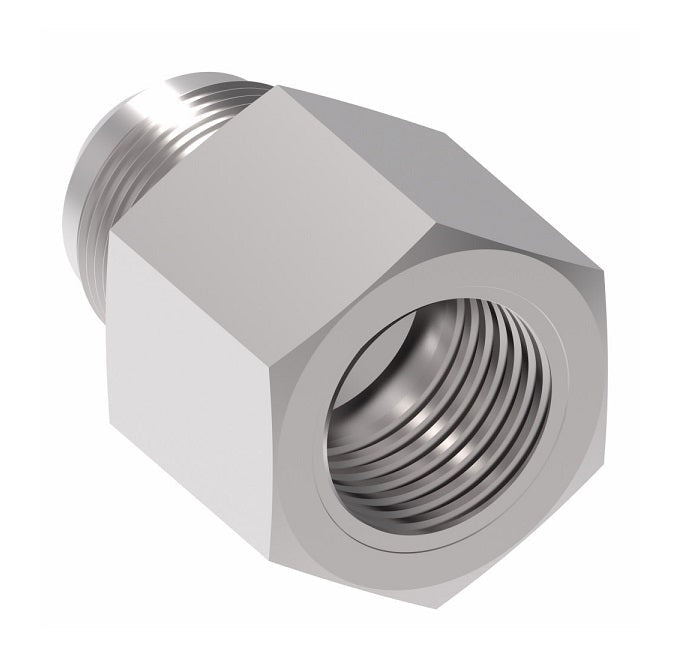

2022-24-24S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -24 Female NPTF x -24 Male SAE 37° Flare | Steel
2022-24-24S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -24 Female NPTF x -24 Male SAE 37° Flare | Steel
2022-24-24S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -24 Female NPTF x -24 Male SAE 37° Flare | Steel
2022-24-24S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -24 Female NPTF x -24 Male SAE 37° Flare | Steel

2022-24-24S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Adapter | -24 Female NPTF x -24 Male SAE 37° Flare | Steel

$51.16 - $51.16
$51.16
$51.16 - $51.16
$51.16

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Adapter
Female NPTF x Male SAE 37° Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2022-24-24S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPTF, 1-1/2in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070103
Part Number
Steel		 Part Number
Brass		 Part Number
Stainless Steel		 Tube O.D. Thread P Thread T A
2022-2-2S - - 0.13" 1/8-27 5/16-24 1.12"
2022-2-3S - - 0.19" 1/8-27 3/8-24 1.13"
2022-2-4S - - 0.25" 1/8-27 7/16-20 1.19"
2022-2-5S - - 0.31" 1/8-27 1/2-20 1.17"
2022-4-3S - - 0.19" 1/4-18 3/8-24 1.32"
2022-4-4S - 259-2022-4-4 0.25" 1/4-18 7/16-20 1.39"
2022-4-5S - - 0.31" 1/4-18 1/2-20 1.39"
2022-4-6S 2022-4-6B - 0.38" 1/4-18 9/16-18 1.40"
2022-4-8S - - 0.50" 1/4-18 3/4-16 1.55"
2022-6-6S - 259-2022-6-6 0.38" 3/8-18 9/16-18 1.46"
2022-6-8S - 259-2022-6-8 0.50" 3/8-18 3/4-16 1.56"
2022-6-10S - - - - - -
2022-8-4S - - 0.25" 1/2-14 7/16-20 1.68"
2022-8-6S - - 0.38" 1/2-14 9/16-18 1.69"
2022-8-8S - 259-2022-8-8 0.50" 1/2-14 3/4-16 1.79"
2022-8-10S - - 0.63" 1/2-14 7/8-14 1.89"
2022-8-12S - - 0.75" 1/2-14 1-1/16-12 2.05"
2022-12-8S - - 0.50" 3/4-14 3/4-16 1.85"
2022-12-10S - - 0.63" 3/4-14 7/8-14 1.95"
2022-12-12S 2022-12-12B - 0.75" 3/4-14 1-1/16-12 2.06"
2022-12-16S - - 1.00" 3/4-14 1-5/16-12 2.12"
2022-16-12S - - 0.75" 1-11-1/2 1-1/16-12 2.30"
2022-16-16S 2022-16-16B 259-2022-16-16 1.00" 1-11-1/2 1-5/16-12 2.35"
2022-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.44"
2022-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 2.49"
2022-24-24S - - 1.50" 1-1/2-11-1/2 1-7/8-12 2.62"
2022-32-32S - - 2.00" 2-11-1/2 2-11-1/2 2.97"
