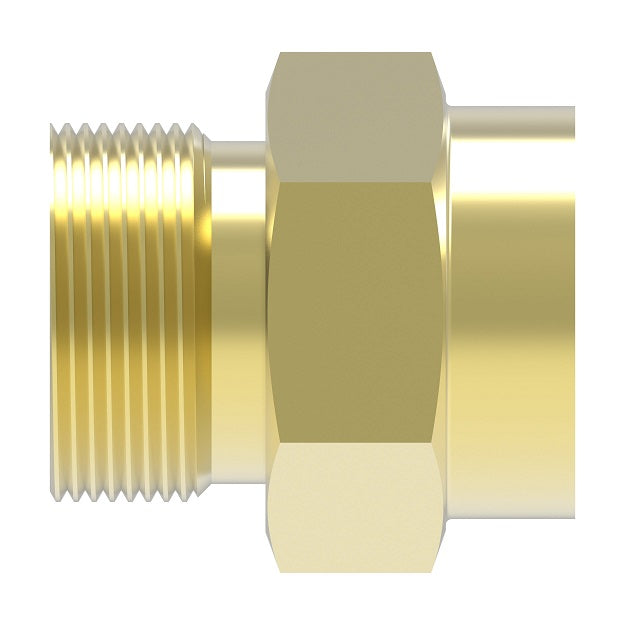

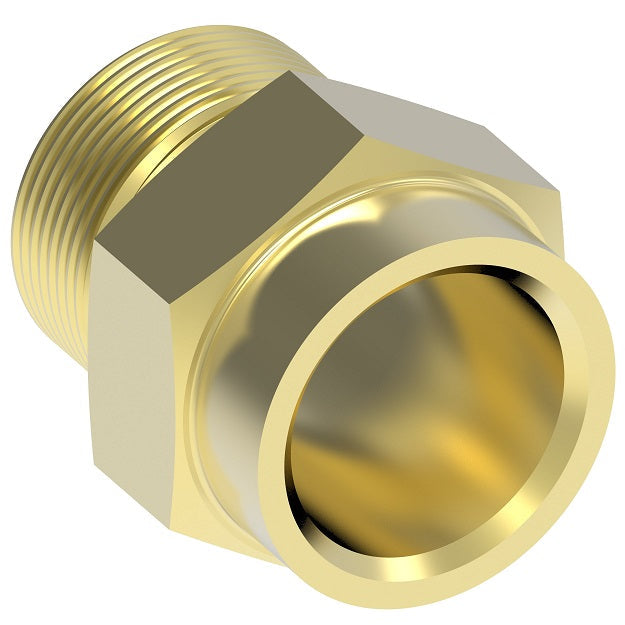

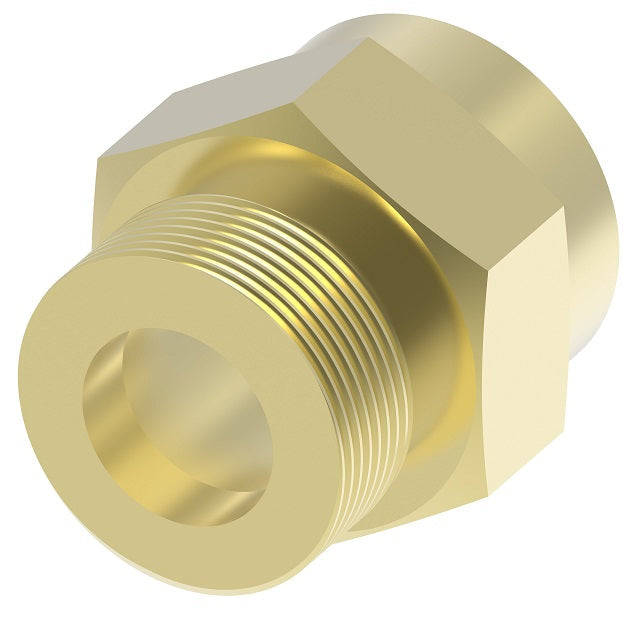

202208-4-8B Aeroquip by Danfoss | Braze Adapter | -04 Male 5400 Series Thread x -08 Braze | Brass

202208-4-8B Aeroquip by Danfoss | Braze Adapter | -04 Male 5400 Series Thread x -08 Braze | Brass

Name: 202208-4-8B Aeroquip by Danfoss | Braze Adapter | -04 Male 5400 Series Thread x -08 Braze | Brass
Brand: Danfoss/Eaton
SKU: 202208-4-8B Danfoss
Price: 97.48 USD
Availability: InStock

$97.48 - $97.48

$97.48

$97.48 - $97.48

$97.48

Aeroquip® by Danfoss
Braze Adapter
Male 5400 Series Thread x Braze
Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

O-Ring Required.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 202208-4-8B Danfoss
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Neoprene

Brass Part number	Steel Part number	Body Size	Thread	Tube OD Size	Required O-Ring Part number
202208-4-4B	-	1/4"	1/2-20	1/4"	22546-12
202208-4-8B	-	1/2"	7/8-20	1/4"	22546-17
202208-5-4B	-	-	-	-	-
202208-6-4B	-	1/4"	1/2-20	3/8"	22546-12
202208-6-8B	-	1/2"	7/8-20	3/8"	22546-17
202208-8-8B	-	1/2"	7/8-20	1/2"	22546-17
202208-10-8B	202208-10-8S	1/2"	7/8-20	5/8"	22546-17
202208-10-12B	202208-10-12S	3/4"	1-1/4-18	5/8"	22546-23
202208-12-12B	-	3/4"	1-1/4-18	3/4"	22546-23
202208-14-12B	-	3/4"	1-1/4-18	7/8"	22546-23
202208-14-16B	-	1"	1-19/32-20	7/8"	22546-28
202208-16-16B	-	1"	1-19/32-20	1"	22546-28
202208-18-16B	-	1"	1-19/32-20	1-1/8"	22546-28
202208-22-16B	-	1"	1-19/32-20	1-1/4"	22546-28
