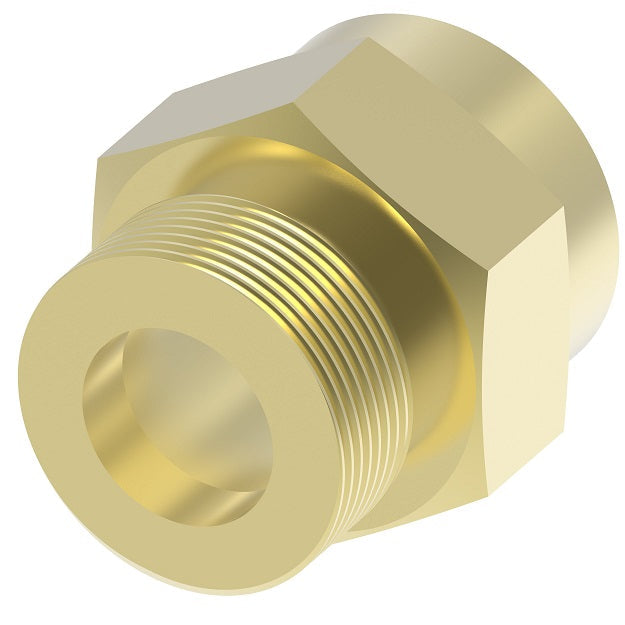

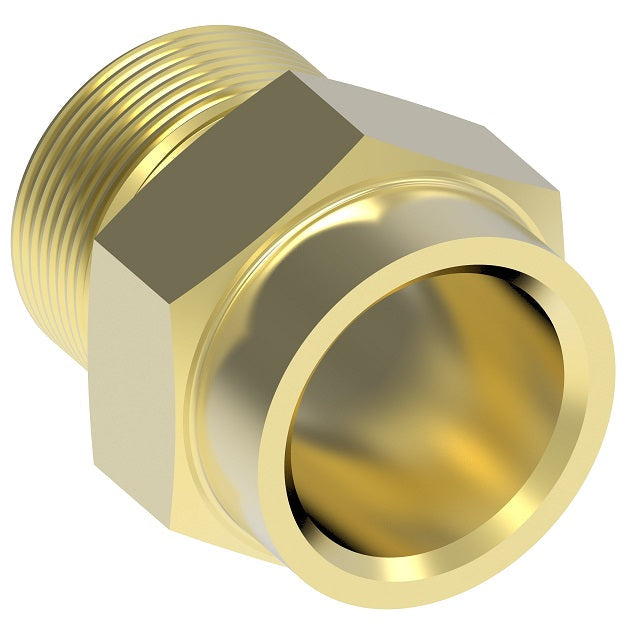

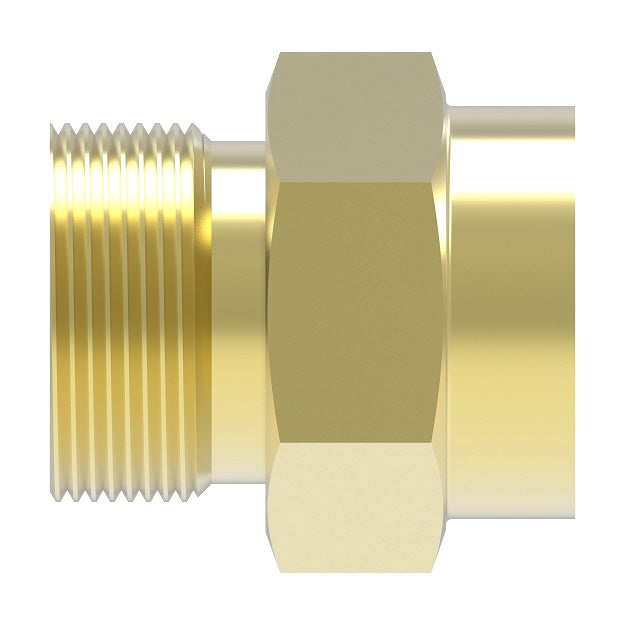

202208-6-8B Aeroquip by Danfoss | Braze Adapter | -06 Male 5400 Series Thread x -08 Braze | Brass

202208-6-8B Aeroquip by Danfoss | Braze Adapter | -06 Male 5400 Series Thread x -08 Braze | Brass

$17.00 - $17.00
$17.00
$17.00 - $17.00
$17.00

Aeroquip® by Danfoss
Braze Adapter
Male 5400 Series Thread x Braze
Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

O-Ring Required.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 202208-6-8B Danfoss
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Neoprene
Brass
Part number		 Steel
Part number		 Body Size Thread Tube OD Size Required O-Ring
Part number
202208-4-4B - 1/4" 1/2-20 1/4" 22546-12
202208-4-8B - 1/2" 7/8-20 1/4" 22546-17
202208-5-4B - - - - -
202208-6-4B - 1/4" 1/2-20 3/8" 22546-12
202208-6-8B - 1/2" 7/8-20 3/8" 22546-17
202208-8-8B - 1/2" 7/8-20 1/2" 22546-17
202208-10-8B 202208-10-8S 1/2" 7/8-20 5/8" 22546-17
202208-10-12B 202208-10-12S 3/4" 1-1/4-18 5/8" 22546-23
202208-12-12B - 3/4" 1-1/4-18 3/4" 22546-23
202208-14-12B - 3/4" 1-1/4-18 7/8" 22546-23
202208-14-16B - 1" 1-19/32-20 7/8" 22546-28
202208-16-16B - 1" 1-19/32-20 1" 22546-28
202208-18-16B - 1" 1-19/32-20 1-1/8" 22546-28
202208-22-16B - 1" 1-19/32-20 1-1/4" 22546-28
