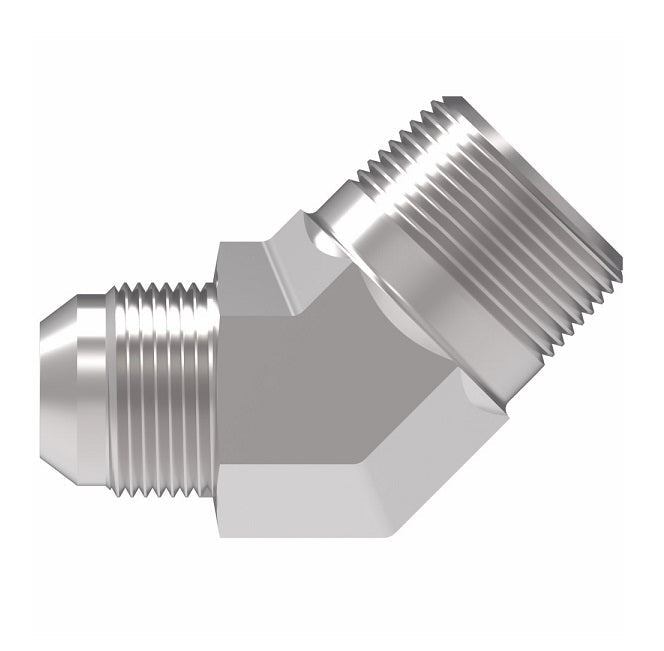

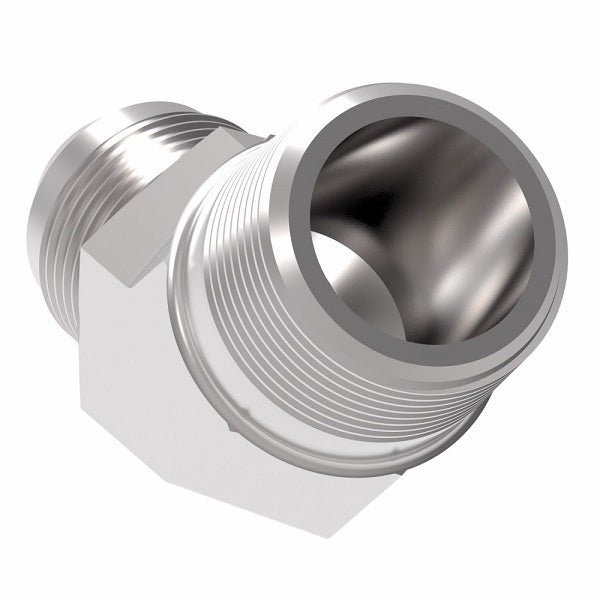

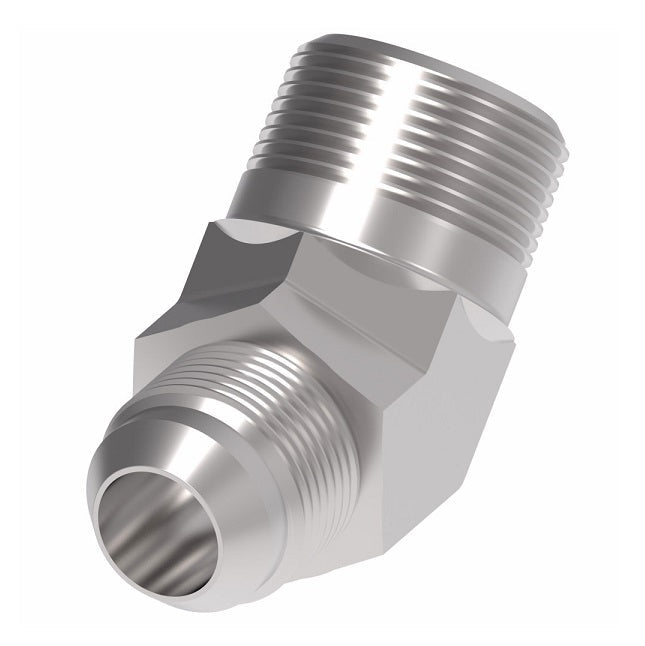

2023-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -04 Male NPTF x -05 Male JIC | Steel

2023-4-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -04 Male NPTF x -05 Male JIC | Steel

$5.85 - $5.85
$5.85
$5.85 - $5.85
$5.85

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male JIC
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2023-4-5S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male NPTF, 5/16in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070302
Part Number
Steel 		Part Number
Brass		 Part Number
Stainless Steel		 Tube O.D. Thread P Thread T A B
2023-2-3S 2023-2-4B - 0.19" 1/8-27 3/8-24 0.72" 0.83"
2023-2-4S - - 0.25" 1/8-27 7/16-20 0.64" 0.72"
2023-2-5S - - 0.31" 1/8-27 1/2-20 0.64" 0.77"
2023-2-6S - - 0.38" 1/8-27 9/16-18 0.67" 0.83"
2023-4-4S 2023-4-4B - 0.25" 1/4-18 7/16-20 0.86" 0.82"
2023-4-5S - - 0.31" 1/4-18 1/2-20 0.86" 0.82"
2023-4-6S 2023-4-6B 259-2023-4-6 0.38" 1/4-18 9/16-18 0.86" 0.83"
2023-4-8S - - 0.50" 1/4-18 3/4-16 0.95" 0.98"
2023-6-4S - - 0.25" 3/8-18 7/16-20 0.95" 0.85"
2023-6-6S 2023-6-6B - 0.38" 3/8-18 9/16-18 0.95" 0.87"
2023-6-8S 2023-6-8B - 0.50" 3/8-18 3/4-16 0.95" 0.98"
2023-6-10S - - 0.63" 3/8-18 7/8-14 0.98" 1.11"
2023-6-12S - - 0.75" 3/8-18 1-1/16-18 1.01" 1.28"
2023-8-6S - - 0.38" 1/2-14 9/16-18 1.17" 0.88"
2023-8-8S - - 0.50" 1/2-14 3/4-16 1.17" 0.99"
2023-8-10S 2023-8-10B - 0.63" 1/2-14 7/8-14 1.17" 1.11"
2023-8-12S - - 0.75" 1/2-14 1-1/16-12 1.20" 1.28"
2023-12-8S - - 0.50" 3/4-14 3/4-16 1.20" 1.04"
2023-12-10S - - 0.63" 3/4-14 7/8-14 1.20" 1.16"
2023-12-12S 2023-12-12B - 0.75" 3/4-14 1-1/16-12 1.20" 1.28"
2023-12-16S - - 1.00" 3/4-14 1-5/16-12 1.29" 1.47"
2023-16-12S - - 0.75" 1-11-1/2 1-1/16-12 1.48" 1.42"
2023-16-16S 2023-16-16B - 1.00" 1-11-1/2 1-5/16-12 1.48" 1.47"
2023-16-20S - - 1.25" 1-11-1/2 1-5/8-12 1.64" 1.59"
2023-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 1.67" 1.59"
2023-24-24S - - 1.50" 1-1/2-11-1/2 1-7/8-12 1.77" 1.78"
2023-32-32S - - 2.00" 2-11-1/2 2-1/2-12 2.11" 2.22"
