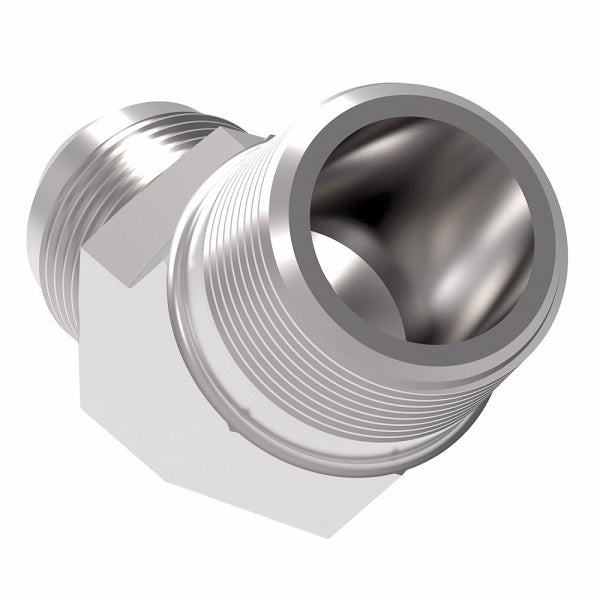

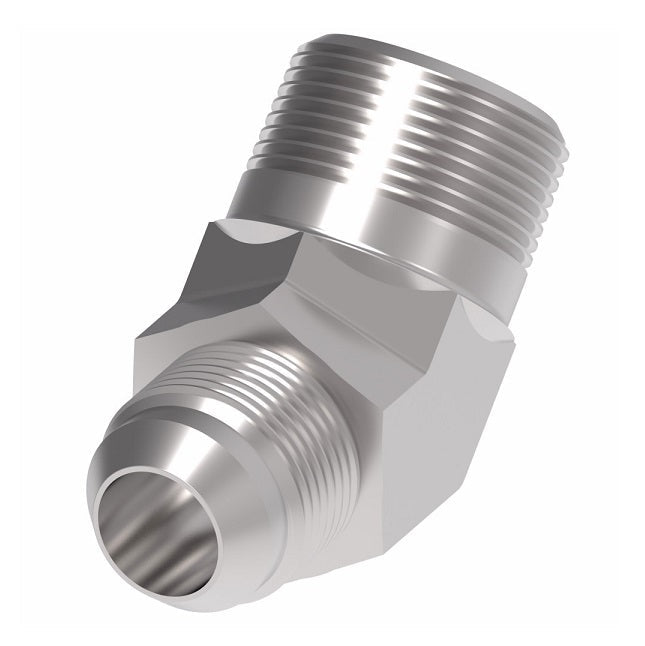

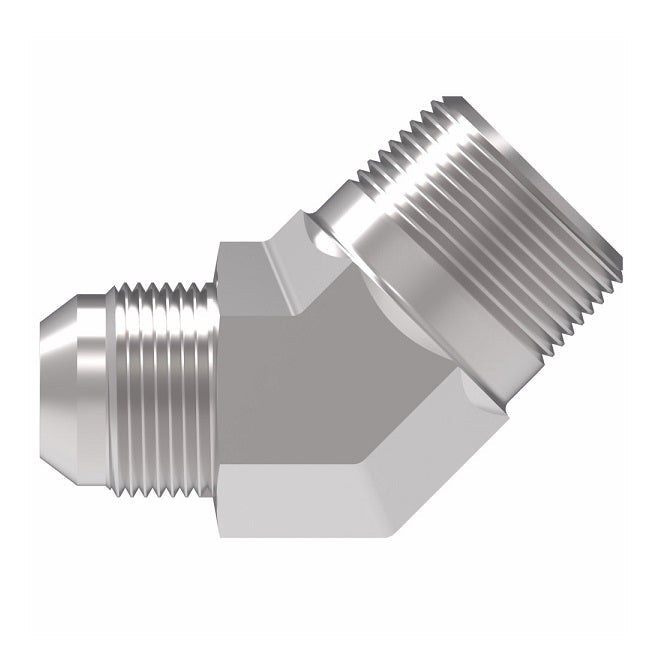

2023-6-6S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -06 Male NPTF x -06 Male JIC | Steel
2023-6-6S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -06 Male NPTF x -06 Male JIC | Steel
2023-6-6S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -06 Male NPTF x -06 Male JIC | Steel
2023-6-6S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -06 Male NPTF x -06 Male JIC | Steel

2023-6-6S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -06 Male NPTF x -06 Male JIC | Steel

$5.89 - $5.89
$5.89
$5.89 - $5.89
$5.89

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male JIC
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2023-6-6S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male NPTF, 3/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070302
Part Number
Steel 		Part Number
Brass		 Part Number
Stainless Steel		 Tube O.D. Thread P Thread T A B
2023-2-3S 2023-2-4B - 0.19" 1/8-27 3/8-24 0.72" 0.83"
2023-2-4S - - 0.25" 1/8-27 7/16-20 0.64" 0.72"
2023-2-5S - - 0.31" 1/8-27 1/2-20 0.64" 0.77"
2023-2-6S - - 0.38" 1/8-27 9/16-18 0.67" 0.83"
2023-4-4S 2023-4-4B - 0.25" 1/4-18 7/16-20 0.86" 0.82"
2023-4-5S - - 0.31" 1/4-18 1/2-20 0.86" 0.82"
2023-4-6S 2023-4-6B 259-2023-4-6 0.38" 1/4-18 9/16-18 0.86" 0.83"
2023-4-8S - - 0.50" 1/4-18 3/4-16 0.95" 0.98"
2023-6-4S - - 0.25" 3/8-18 7/16-20 0.95" 0.85"
2023-6-6S 2023-6-6B - 0.38" 3/8-18 9/16-18 0.95" 0.87"
2023-6-8S 2023-6-8B - 0.50" 3/8-18 3/4-16 0.95" 0.98"
2023-6-10S - - 0.63" 3/8-18 7/8-14 0.98" 1.11"
2023-6-12S - - 0.75" 3/8-18 1-1/16-18 1.01" 1.28"
2023-8-6S - - 0.38" 1/2-14 9/16-18 1.17" 0.88"
2023-8-8S - - 0.50" 1/2-14 3/4-16 1.17" 0.99"
2023-8-10S 2023-8-10B - 0.63" 1/2-14 7/8-14 1.17" 1.11"
2023-8-12S - - 0.75" 1/2-14 1-1/16-12 1.20" 1.28"
2023-12-8S - - 0.50" 3/4-14 3/4-16 1.20" 1.04"
2023-12-10S - - 0.63" 3/4-14 7/8-14 1.20" 1.16"
2023-12-12S 2023-12-12B - 0.75" 3/4-14 1-1/16-12 1.20" 1.28"
2023-12-16S - - 1.00" 3/4-14 1-5/16-12 1.29" 1.47"
2023-16-12S - - 0.75" 1-11-1/2 1-1/16-12 1.48" 1.42"
2023-16-16S 2023-16-16B - 1.00" 1-11-1/2 1-5/16-12 1.48" 1.47"
2023-16-20S - - 1.25" 1-11-1/2 1-5/8-12 1.64" 1.59"
2023-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 1.67" 1.59"
2023-24-24S - - 1.50" 1-1/2-11-1/2 1-7/8-12 1.77" 1.78"
2023-32-32S - - 2.00" 2-11-1/2 2-1/2-12 2.11" 2.22"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
