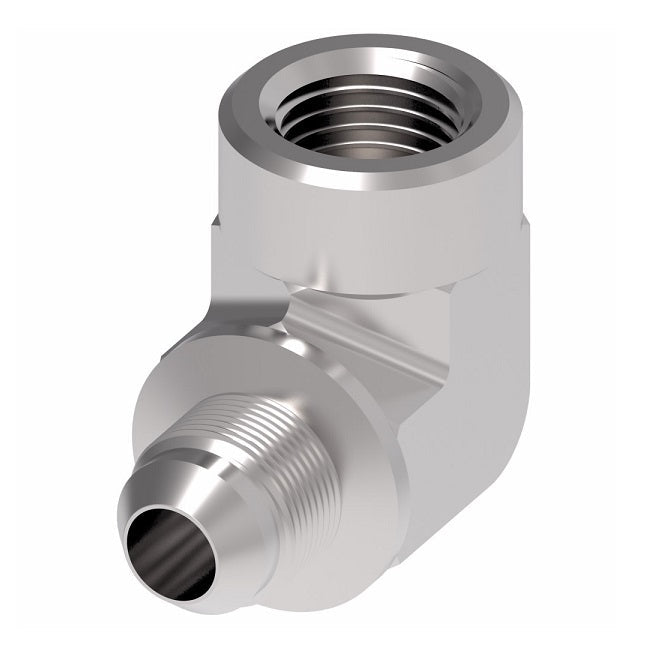

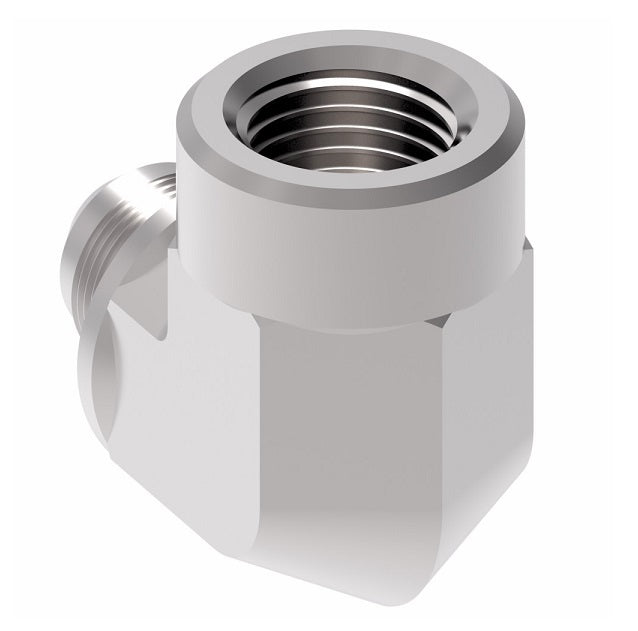

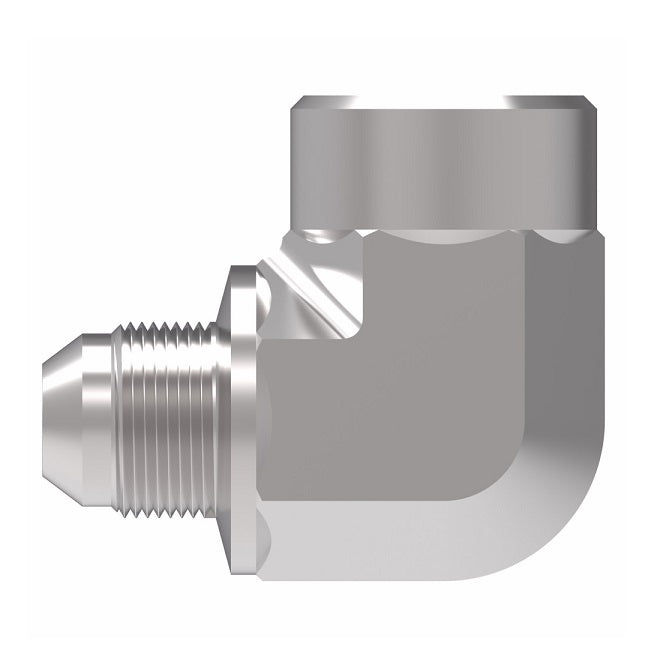

2025-12-12S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -12 Female NPTF x -12 Male 37° JIC Flare Swivel | Steel

2025-12-12S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -12 Female NPTF x -12 Male 37° JIC Flare Swivel | Steel

$28.54 - $28.54
$28.54
$28.54 - $28.54
$28.54

Aeroquip® by Danfoss
External Pipe Swivel/37° JIC Flare Adapter
Male NPTF Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2025-12-12S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female NPTF, 3/4in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070203
Part Number
Steel		 Part Number
Brass		 Tube O.D. Thread P Thread T A B
2025-2-4S 2025-2-4B 0.25" 1/8-27 7/16-20 0.66" 1.08"
2025-2-5S - 0.31" 1/8-27 1/2-20 0.66" 1.08"
2025-2-6S - 0.38" 1/8-27 9/16-18 0.67" 1.23"
2025-4-4S - 0.25" 1/4-18 7/16-20 0.88" 1.22"
2025-4-5S - 0.31" 1/4-18 1/2-20 0.88" 1.22"
2025-4-6S - 0.38" 1/4-18 9/16-18 0.88" 1.23"
2025-4-8S - 0.50" 1/4-18 3/4-16 1.01" 1.42"
2025-6-4S - 0.25" 3/8-18 7/16-20 1.02" 1.29"
2025-6-6S - 0.38" 3/8-18 9/16-18 1.02" 1.31"
2025-6-8S - 0.50" 3/8-18 3/4-16 1.02" 1.42"
2025-8-4S - 0.25" 1/2-14 7/16-20 1.23" 1.40"
2025-8-8S - 0.50" 1/2-14 3/4-16 1.23" 1.52"
2025-8-10S - 0.63" 1/2-14 7/8-14 1.23" 1.64"
2025-8-12S - 0.75" 1/2-14 1-1/16-12 1.35" 1.89"
2025-12-12S - 0.75" 3/4-14 1-1/16-12 1.36" 1.89"
2025-16-16S - 1.00" 1-11-1/2 1-5/16-12 1.62" 2.17"
2025-20-20S - 1.25" 1-1/4-11-1/2 1-5/8-12 1.70" 2.33"
2025-24-24S - 1.50" 1-1/2-11-1/2 1-7/8-12 2.08" 2.89"
a>"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
