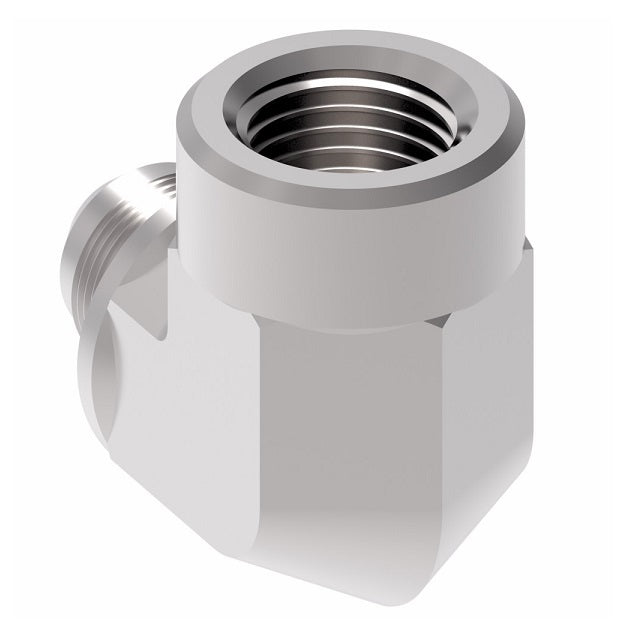

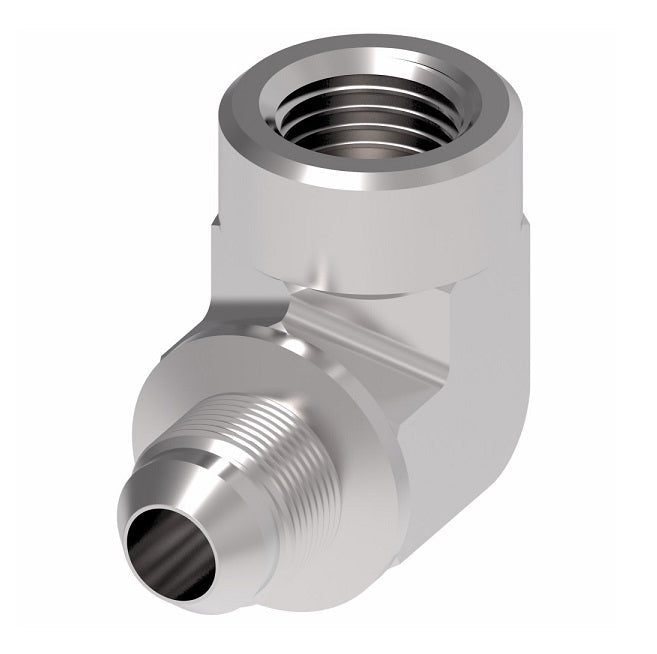

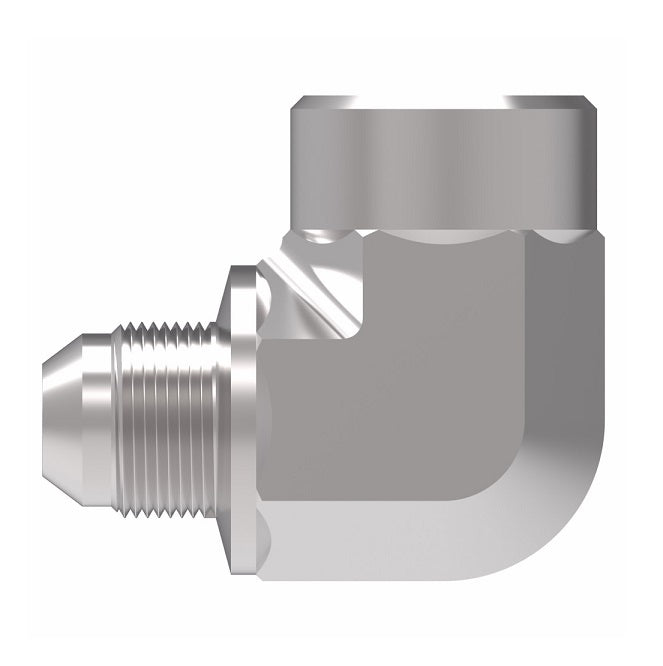

2025-4-6S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -04 Female NPTF x -06 Male 37° JIC Flare Swivel | Steel
2025-4-6S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -04 Female NPTF x -06 Male 37° JIC Flare Swivel | Steel
2025-4-6S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -04 Female NPTF x -06 Male 37° JIC Flare Swivel | Steel
2025-4-6S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -04 Female NPTF x -06 Male 37° JIC Flare Swivel | Steel

2025-4-6S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -04 Female NPTF x -06 Male 37° JIC Flare Swivel | Steel

$7.19 - $7.19
$7.19
$7.19 - $7.19
$7.19

Aeroquip® by Danfoss
External Pipe Swivel/37° JIC Flare Adapter
Male NPTF Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2025-4-6S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female NPTF, 3/8in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070203
Part Number
Steel		 Part Number
Brass		 Tube O.D. Thread P Thread T A B
2025-2-4S 2025-2-4B 0.25" 1/8-27 7/16-20 0.66" 1.08"
2025-2-5S - 0.31" 1/8-27 1/2-20 0.66" 1.08"
2025-2-6S - 0.38" 1/8-27 9/16-18 0.67" 1.23"
2025-4-4S - 0.25" 1/4-18 7/16-20 0.88" 1.22"
2025-4-5S - 0.31" 1/4-18 1/2-20 0.88" 1.22"
2025-4-6S - 0.38" 1/4-18 9/16-18 0.88" 1.23"
2025-4-8S - 0.50" 1/4-18 3/4-16 1.01" 1.42"
2025-6-4S - 0.25" 3/8-18 7/16-20 1.02" 1.29"
2025-6-6S - 0.38" 3/8-18 9/16-18 1.02" 1.31"
2025-6-8S - 0.50" 3/8-18 3/4-16 1.02" 1.42"
2025-8-4S - 0.25" 1/2-14 7/16-20 1.23" 1.40"
2025-8-8S - 0.50" 1/2-14 3/4-16 1.23" 1.52"
2025-8-10S - 0.63" 1/2-14 7/8-14 1.23" 1.64"
2025-8-12S - 0.75" 1/2-14 1-1/16-12 1.35" 1.89"
2025-12-12S - 0.75" 3/4-14 1-1/16-12 1.36" 1.89"
2025-16-16S - 1.00" 1-11-1/2 1-5/16-12 1.62" 2.17"
2025-20-20S - 1.25" 1-1/4-11-1/2 1-5/8-12 1.70" 2.33"
2025-24-24S - 1.50" 1-1/2-11-1/2 1-7/8-12 2.08" 2.89"
