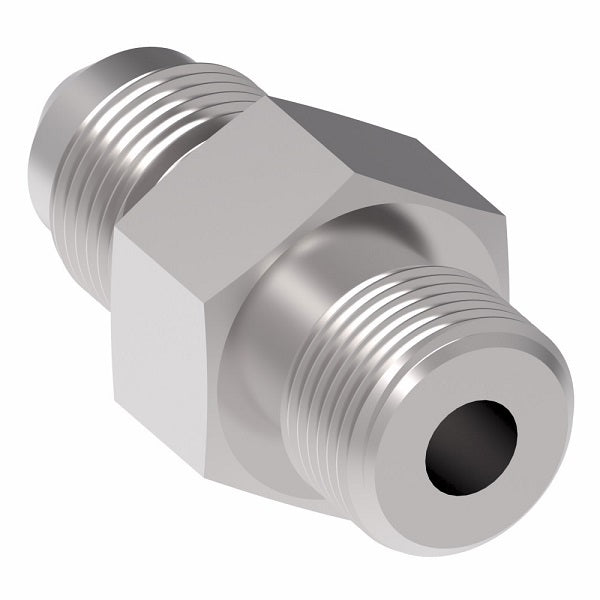

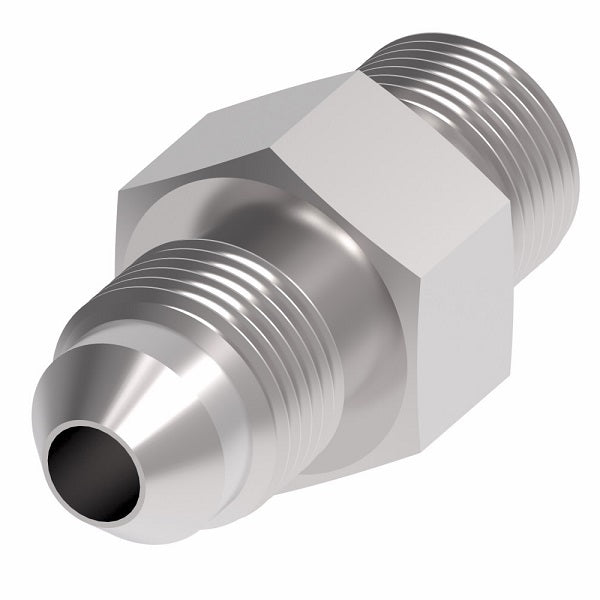

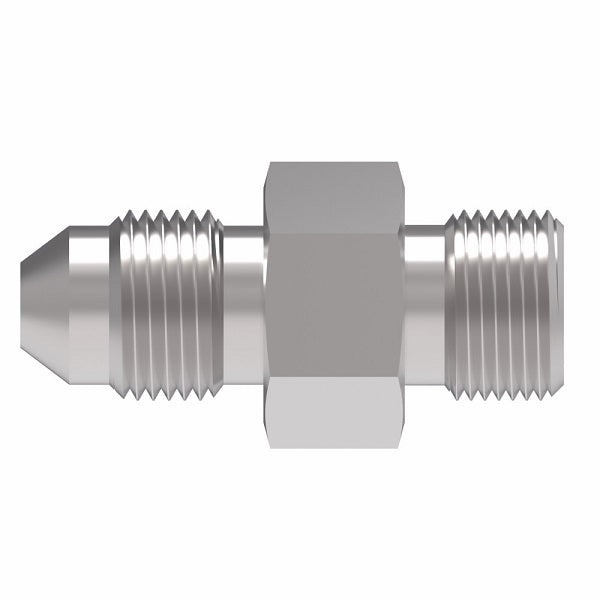

202701-24-16S Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter (without O-Ring) | -24 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel
202701-24-16S Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter (without O-Ring) | -24 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel
202701-24-16S Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter (without O-Ring) | -24 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel
202701-24-16S Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter (without O-Ring) | -24 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel

202701-24-16S Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter (without O-Ring) | -24 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel

$65.85 - $65.85
$65.85
$65.85 - $65.85
$65.85

Aeroquip® by Danfoss
SAE ORB/37° JIC Flare Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 202701-24-16S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male O-Ring Boss, 1in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070120
Part Number
Steel
Buna-N O-Ring		 Part Number
Stainless Steel
Buna-N O-Ring		 Part Number
Steel
Viton O-Ring		 Part Number
Steel
without O-Ring		 Part Number
Stainless Steel
without O-Ring		 Tube
O.D.		 Thread
T1		 Thread
T2		 A
202702-2-2S - - - - 0.13" 5/16-24 5/16-24 1.06"
202702-3-3S - - - - 0.19" 3/8-24 3/8-24 1.10"
202702-4-4S 259-202702-4-4 - 202701-4-4S 259-202701-4-4 0.25" 7/16-20 7/16-20 1.23"
202702-4-5S - - - - 0.31" 7/16-20 1/2-20 1.23"
202702-4-6S - - 202701-4-6S - 0.38" 7/16-20 9/16-18 1.27"
202702-4-8S - - - - 0.50" 7/16-20 3/4-16 1.49"
202702-5-4S - - - - 0.25" 1/2-20 7/16-20 1.23"
202702-5-5S - - - - 0.31" 1/2-20 1/2-20 1.23"
202702-5-6S - - 202701-5-6S - 0.38" 1/2-20 9/16-18 1.27"
202702-6-4S - - 202701-6-4S - 0.25" 9/16-18 7/16-20 1.29"
202702-6-5S - - - - 0.31" 9/16-18 1/2-20 1.29"
202702-6-6S 259-202702-6-6 213-202702-6-6 202701-6-6S 259-202701-6-6 0.38" 9/16-18 9/16-18 1.30"
202702-6-8S - - 202701-6-8S - 0.50" 9/16-18 3/4-16 1.44"
202702-6-10S - - - - 0.63" 9/16-18 7/8-14 1.71"
202702-8-4S - - 202701-8-4S - 0.25" 3/4-16 7/16-20 1.37"
202702-8-5S - - - - 0.31" 3/4-16 1/2-20 1.37"
202702-8-6S 259-202702-8-6 - 202701-8-6S 259-202701-8-6 0.38" 3/4-16 9/16-18 1.38"
202702-8-8S 259-202702-8-8 - 202701-8-8S 259-202701-8-8 0.50" 3/4-16 3/4-16 1.48"
202702-8-10S - 213-202702-8-10 202701-8-10S - 0.63" 3/4-16 7/8-14 1.64"
202702-8-12S - 213-202702-8-12 202701-8-12S - 0.75" 3/4-16 1-1/16-12 1.94"
202702-10-4S - - - - 0.25" 7/8-14 7/16-20 1.49"
202702-10-6S - - - - 0.38" 7/8-14 9/16-18 1.50"
202702-10-8S - 213-202702-10-8 202701-10-8S - 0.50" 7/8-14 3/4-16 1.60"
202702-10-10S - 213-202702-10-10 202701-10-10S - 0.63" 7/8-14 7/8-14 1.70"
202702-10-12S - - 202701-10-12S - 0.75" 7/8-14 1-1/16-12 1.88"
202702-10-16S - - - - 1.00" 7/8-14 1-5/16-12 2.07"
202702-12-6S - - - - 0.38" 1-1/16-12 9/16-18 1.66"
202702-12-8S - - 202701-12-8S - 0.50" 1-1/16-12 3/4-16 1.76"
202702-12-10S - - 202701-12-10S - 0.63" 1-1/16-12 7/8-14 1.86"
202702-12-12S 259-202702-12-12 213-202702-12-12 202701-12-12S 259-202701-12-12 0.75" 1-1/16-12 1-1/16-12 1.97"
202702-12-14S - - - - 0.88" 1-1/16-12 1-3/16-12 1.99"
202702-12-16S - - 202701-12-16S - 1.00" 1-1/16-12 1-5/16-12 2.04"
202702-12-20S - - - - 1.25" 1-1/16-12 1-5/8-12 2.30"
202702-14-10S - - - - 0.63" 1-3/16-12 7/8-14 1.86"
202702-14-12S - - - - 0.75" 1-3/16-12 1-1/16-12 1.96"
202702-14-14S - - 202701-14-14S - 0.88" 1-3/16-12 1-3/16-12 1.99"
202702-14-16S - - - - 1.00" 1-3/16-12 1-5/16-12 2.04"
202702-16-8S 259-202702-16-8 - 202701-16-8S - 0.50" 1-5/16-12 3/4-16 1.79"
202702-16-10S - - 202701-16-10S - 0.63" 1-5/16-12 7/8-14 1.89"
202702-16-12S - - 202701-16-12S - 0.75" 1-5/16-12 1-1/16-12 1.99"
202702-16-16S 259-202702-16-16 213-202702-16-16 202701-16-16S 259-202701-16-16 1.00" 1-5/16-12 1-5/16-12 2.04"
202702-16-20S - 213-202702-16-20 202701-16-20S - 1.25" 1-5/16-12 1-5/8-12 2.33"
202702-20-12S - - - - 0.75" 1-5/8-12 1-1/16-12 2.08"
202702-20-16S - - 202701-20-16S - 1.00" 1-5/8-12 1-5/16-12 2.12"
202702-20-20S - 213-202702-20-20 202701-20-20S - 1.25" 1-5/8-12 1-5/8-12 2.17"
202702-20-24S - - - - 1.50" 1-5/8-12 1-7/8-12 2.53"
202702-24-16S - - 202701-24-16S - 1.00" 1-7/8-12 1-5/16-12 2.20"
202702-24-20S - - 202701-24-20S - 1.25" 1-7/8-12 1-5/8-12 2.24"
202702-24-24S - - - - 1.50" 1-7/8-12 1-7/8-12 2.37"
202702-32-32S - - 202701-32-32S - 2.00" 2-1/2-12 2-1/2-12 2.78"
