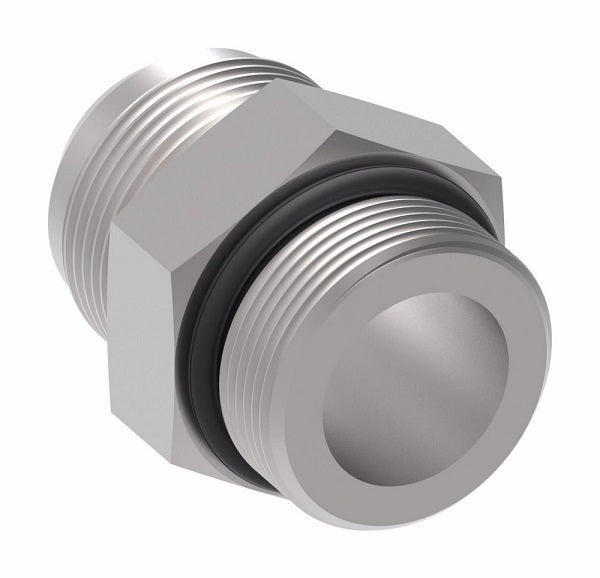

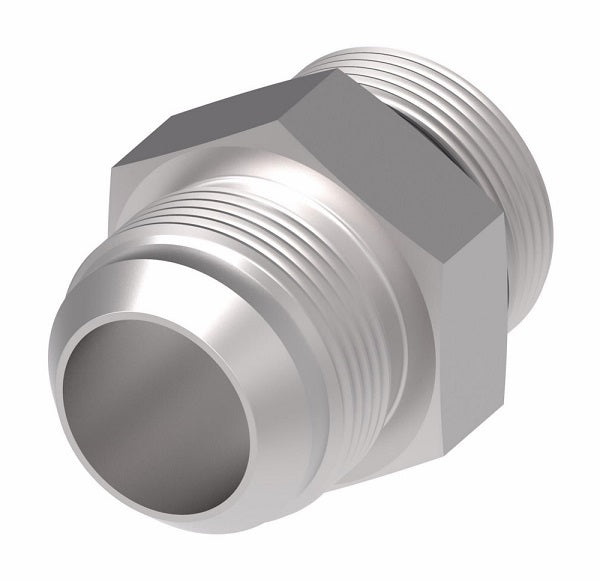

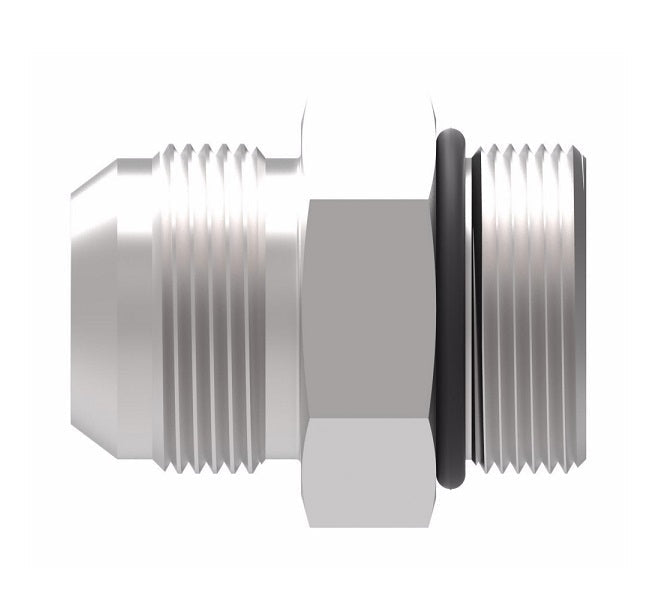

213-202702-6-6 Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare | Viton O-Ring | Steel
213-202702-6-6 Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare | Viton O-Ring | Steel
213-202702-6-6 Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare | Viton O-Ring | Steel
213-202702-6-6 Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare | Viton O-Ring | Steel

213-202702-6-6 Aeroquip by Danfoss | SAE ORB/37° JIC Flare Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare | Viton O-Ring | Steel

$6.75 - $6.75
$6.75
$6.75 - $6.75
$6.75

Aeroquip® by Danfoss
SAE ORB/37° JIC Flare Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 213-202702-6-6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Boss, 3/8in Male JIC
Material(s): Steel
Seal Material(s): Viton/FKM
Specifications:
  • Ref. SAE 070120
Part Number
Steel
Buna-N O-Ring		 Part Number
Stainless Steel
Buna-N O-Ring		 Part Number
Steel
Viton O-Ring		 Part Number
Steel
without O-Ring		 Part Number
Stainless Steel
without O-Ring		 Tube
O.D.		 Thread
T1		 Thread
T2		 A
202702-2-2S - - - - 0.13" 5/16-24 5/16-24 1.06"
202702-3-3S - - - - 0.19" 3/8-24 3/8-24 1.10"
202702-4-4S 259-202702-4-4 - 202701-4-4S 259-202701-4-4 0.25" 7/16-20 7/16-20 1.23"
202702-4-5S - - - - 0.31" 7/16-20 1/2-20 1.23"
202702-4-6S - - 202701-4-6S - 0.38" 7/16-20 9/16-18 1.27"
202702-4-8S - - - - 0.50" 7/16-20 3/4-16 1.49"
202702-5-4S - - - - 0.25" 1/2-20 7/16-20 1.23"
202702-5-5S - - - - 0.31" 1/2-20 1/2-20 1.23"
202702-5-6S - - 202701-5-6S - 0.38" 1/2-20 9/16-18 1.27"
202702-6-4S - - 202701-6-4S - 0.25" 9/16-18 7/16-20 1.29"
202702-6-5S - - - - 0.31" 9/16-18 1/2-20 1.29"
202702-6-6S 259-202702-6-6 213-202702-6-6 202701-6-6S 259-202701-6-6 0.38" 9/16-18 9/16-18 1.30"
202702-6-8S - - 202701-6-8S - 0.50" 9/16-18 3/4-16 1.44"
202702-6-10S - - - - 0.63" 9/16-18 7/8-14 1.71"
202702-8-4S - - 202701-8-4S - 0.25" 3/4-16 7/16-20 1.37"
202702-8-5S - - - - 0.31" 3/4-16 1/2-20 1.37"
202702-8-6S 259-202702-8-6 - 202701-8-6S 259-202701-8-6 0.38" 3/4-16 9/16-18 1.38"
202702-8-8S 259-202702-8-8 - 202701-8-8S 259-202701-8-8 0.50" 3/4-16 3/4-16 1.48"
202702-8-10S - 213-202702-8-10 202701-8-10S - 0.63" 3/4-16 7/8-14 1.64"
202702-8-12S - 213-202702-8-12 202701-8-12S - 0.75" 3/4-16 1-1/16-12 1.94"
202702-10-4S - - - - 0.25" 7/8-14 7/16-20 1.49"
202702-10-6S - - - - 0.38" 7/8-14 9/16-18 1.50"
202702-10-8S - 213-202702-10-8 202701-10-8S - 0.50" 7/8-14 3/4-16 1.60"
202702-10-10S - 213-202702-10-10 202701-10-10S - 0.63" 7/8-14 7/8-14 1.70"
202702-10-12S - - 202701-10-12S - 0.75" 7/8-14 1-1/16-12 1.88"
202702-10-16S - - - - 1.00" 7/8-14 1-5/16-12 2.07"
202702-12-6S - - - - 0.38" 1-1/16-12 9/16-18 1.66"
202702-12-8S - - 202701-12-8S - 0.50" 1-1/16-12 3/4-16 1.76"
202702-12-10S - - 202701-12-10S - 0.63" 1-1/16-12 7/8-14 1.86"
202702-12-12S 259-202702-12-12 213-202702-12-12 202701-12-12S 259-202701-12-12 0.75" 1-1/16-12 1-1/16-12 1.97"
202702-12-14S - - - - 0.88" 1-1/16-12 1-3/16-12 1.99"
202702-12-16S - - 202701-12-16S - 1.00" 1-1/16-12 1-5/16-12 2.04"
202702-12-20S - - - - 1.25" 1-1/16-12 1-5/8-12 2.30"
202702-14-10S - - - - 0.63" 1-3/16-12 7/8-14 1.86"
202702-14-12S - - - - 0.75" 1-3/16-12 1-1/16-12 1.96"
202702-14-14S - - 202701-14-14S - 0.88" 1-3/16-12 1-3/16-12 1.99"
202702-14-16S - - - - 1.00" 1-3/16-12 1-5/16-12 2.04"
202702-16-8S 259-202702-16-8 - 202701-16-8S - 0.50" 1-5/16-12 3/4-16 1.79"
202702-16-10S - - 202701-16-10S - 0.63" 1-5/16-12 7/8-14 1.89"
202702-16-12S - - 202701-16-12S - 0.75" 1-5/16-12 1-1/16-12 1.99"
202702-16-16S 259-202702-16-16 213-202702-16-16 202701-16-16S 259-202701-16-16 1.00" 1-5/16-12 1-5/16-12 2.04"
202702-16-20S - 213-202702-16-20 202701-16-20S - 1.25" 1-5/16-12 1-5/8-12 2.33"
202702-20-12S - - - - 0.75" 1-5/8-12 1-1/16-12 2.08"
202702-20-16S - - 202701-20-16S - 1.00" 1-5/8-12 1-5/16-12 2.12"
202702-20-20S - 213-202702-20-20 202701-20-20S - 1.25" 1-5/8-12 1-5/8-12 2.17"
202702-20-24S - - - - 1.50" 1-5/8-12 1-7/8-12 2.53"
202702-24-16S - - 202701-24-16S - 1.00" 1-7/8-12 1-5/16-12 2.20"
202702-24-20S - - 202701-24-20S - 1.25" 1-7/8-12 1-5/8-12 2.24"
202702-24-24S - - - - 1.50" 1-7/8-12 1-7/8-12 2.37"
202702-32-32S - - 202701-32-32S - 2.00" 2-1/2-12 2-1/2-12 2.78"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
