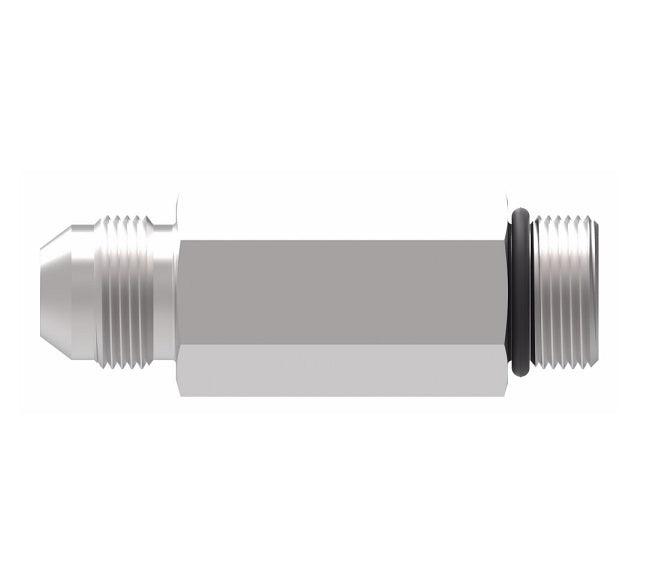

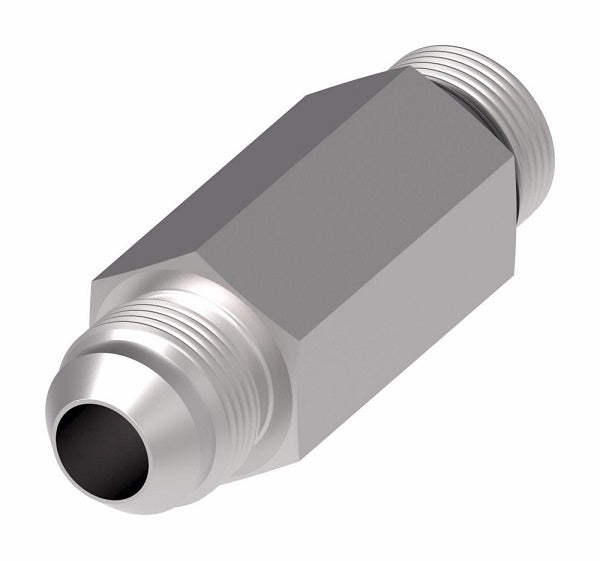

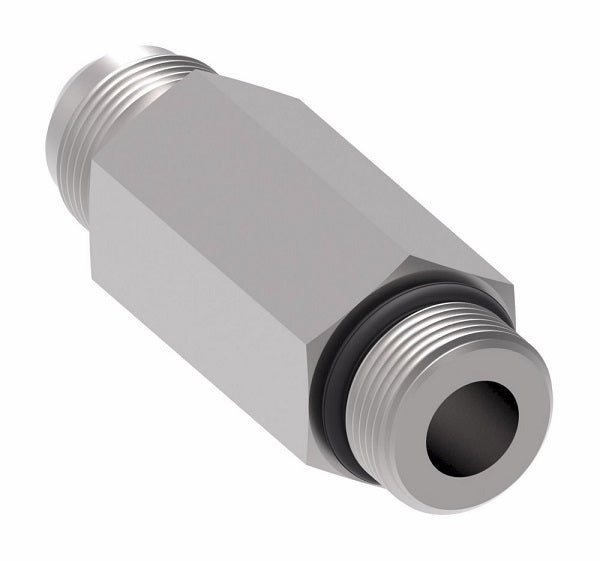

202713-4-4S Aeroquip by Danfoss | SAE ORB/37° Flare Long Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare | Steel

202713-4-4S Aeroquip by Danfoss | SAE ORB/37° Flare Long Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare | Steel

Name: 202713-4-4S Aeroquip by Danfoss | SAE ORB/37° Flare Long Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 202713-4-4S Danfoss
Price: 12.04 USD
Availability: InStock

$12.04 - $12.04

$12.04

$12.04 - $12.04

$12.04

Aeroquip® by Danfoss
SAE ORB/37° Flare Long Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 202713-4-4S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male O-Ring Boss, 1/4in Male JIC
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T1	Thread T2	A
202713-4-4S	0.25"	7/16-20	7/16-20	2.08"
202713-6-6S	0.38"	9/16-18	9/16-18	2.31"
202713-6-8S	-	9/16-18	3/4-16	-
202713-8-8S	0.50"	3/4-16	3/4-16	2.70"
202713-10-10S	0.63"	7/8-14	7/8-14	3.04"
202713-12-12S	0.75"	1-1/16-12	1-1/16-12	3.61"
202713-16-16S	1.00"	1-5/16-12	1-5/16-12	3.98"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
