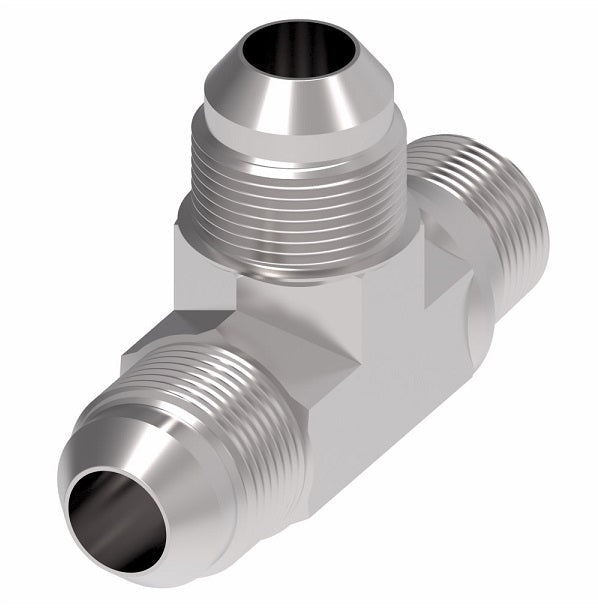

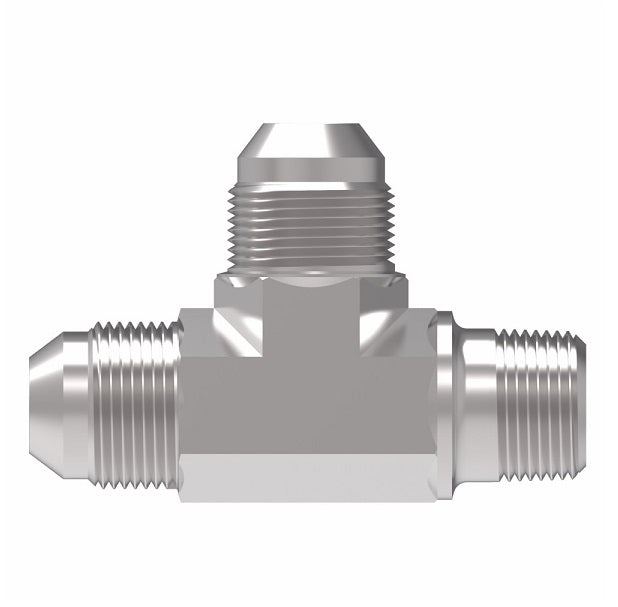

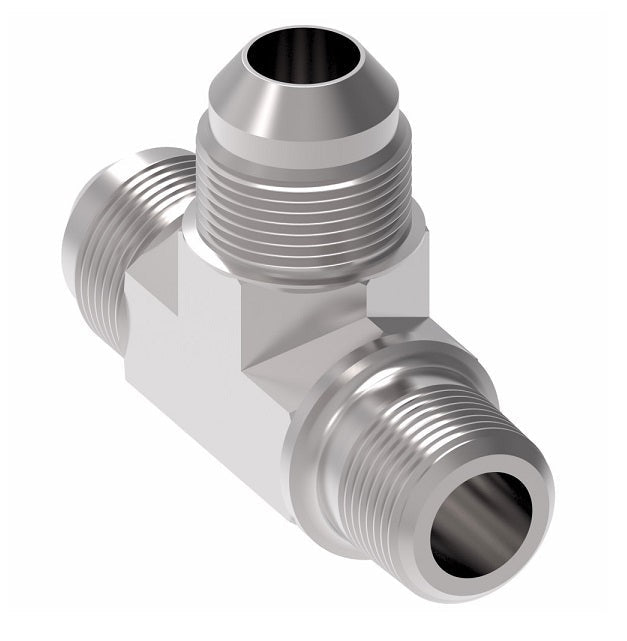

2028-8-12S Aeroquip by Danfoss | External Pipe Run/37° JIC Flare Tee Adapter | -08 Male NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2028-8-12S Aeroquip by Danfoss | External Pipe Run/37° JIC Flare Tee Adapter | -08 Male NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2028-8-12S Aeroquip by Danfoss | External Pipe Run/37° JIC Flare Tee Adapter | -08 Male NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2028-8-12S Aeroquip by Danfoss | External Pipe Run/37° JIC Flare Tee Adapter | -08 Male NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

2028-8-12S Aeroquip by Danfoss | External Pipe Run/37° JIC Flare Tee Adapter | -08 Male NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

$38.26 - $38.26
$38.26
$38.26 - $38.26
$38.26

Aeroquip® by Danfoss
External Pipe Run/37° JIC Flare Tee Adapter
Male NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2028-8-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Male NPTF, 3/4in Male JIC, 3/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070424
Part Number
Steel 		Tube O.D. Thread P Thread T A B C
2028-2-3S 0.19" 1/8-27 3/8-24 0.72" 0.83" 0.83"
2028-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.89" 0.89"
2028-4-4S 0.25" 1/4-18 7/16-20 1.09" 1.05" 1.05"
2028-4-5S 0.31" 1/4-18 1/2-20 1.09" 1.05" 1.05"
2028-4-6S 0.38" 1/4-18 9/16-18 1.09" 1.06" 1.06"
2028-6-6S 0.38" 3/8-18 9/16-18 1.22" 1.14" 1.14"
2028-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.25" 1.25"
2028-8-8S 0.50" 1/2-14 3/4-16 1.47" 1.33" 1.33"
2028-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.45" 1.45"
2028-8-12S 0.75" 1/2-14 1-1/16-12 1.59" 1.66" 1.66"
2028-12-10S 0.63" 3/4-14 7/8-14 1.59" 1.54" 1.54"
2028-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.66" 1.66"
2028-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.81" 1.81"
2028-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 2.06" 2.06"
2028-24-24S 1.50" 1-1/2-11-1/2 1-7/8-12 2.64" 2.33" 2.33"
2028-32-32S 2.00" 2-11-1/2 2-1/2-12 3.00" 3.06" 3.06"
