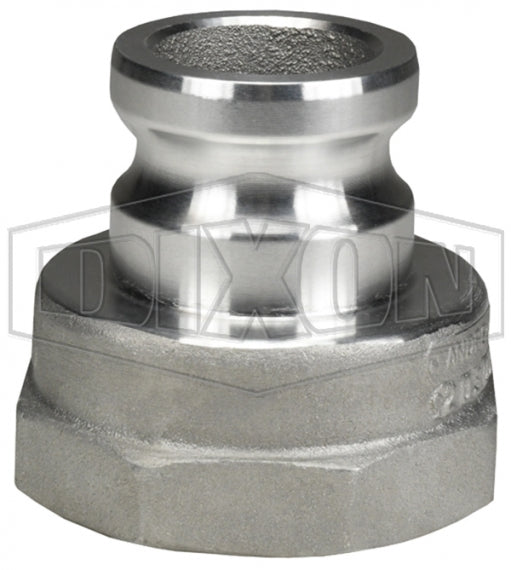

2030-A-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type A | 2" Adapter x 3" Female NPT | Aluminum

Name: 2030-A-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type A | 2" Adapter x 3" Female NPT | Aluminum
Brand: Dixon
SKU: 2030-A-AL Dixon
Price: 43.76 USD
Availability: InStock

Save $3.81

$47.57

$47.57 - $47.57

$47.57

$43.76

$43.76 - $43.76

$43.76

Dixon Valve
Cam & Groove Reducer (Jump Size) Adapter | Type A | Adapter x Female NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 2030-A-AL Dixon
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2in Male Cam & Groove, 3in Female NPT
Material(s):	Aluminum

Features:
Precision machined to rigid tolerances.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	316 Stainless Steel Part Number	Size Adapter x Female NPT	Maximum Operating Pressure
2015-A-AL	-	2015-A-SS*	2" x 1-1/2"	250 PSI
2030-A-AL	-	2030-A-SS	2" x 3"	125 PSI
-	2520-A-BR	-	2-1/2" x 2"	125 PSI
3020-A-AL	-	3020-A-SS	3" x 2"	125 PSI
3040-A-AL	-	-	3" x 4"	100 PSI
4030-A-AL	-	4030-A-SS*	4" x 3"	100 PSI
4060-A-AL	-	-	4" x 6"	75 PSI
6040-A-AL	-	6040-A-SS*	6" x 4"	75 PSI

* Parts are produced as a welded fabrication
