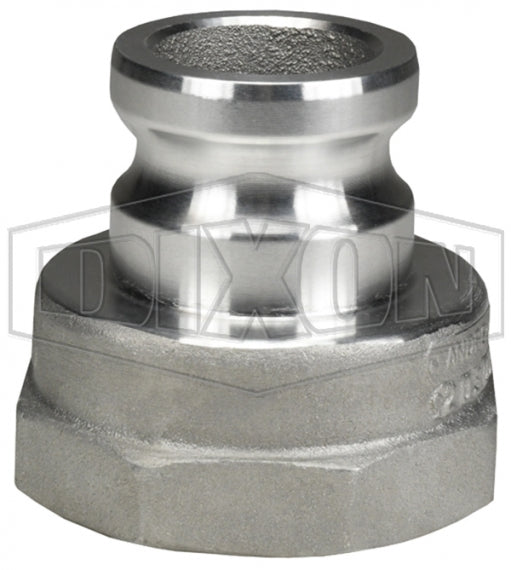

4060-A-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type A | 4" Adapter x 6" Female NPT | Aluminum

4060-A-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type A | 4" Adapter x 6" Female NPT | Aluminum

Save $88.37 Save $88.37
$220.92
$220.92 - $220.92
$220.92
$132.55
$132.55 - $132.55
$132.55

Dixon Valve
Cam & Groove Reducer (Jump Size) Adapter | Type A | Adapter x Female NPT

Designed for use with liquids.
Specifications for Variant SKU: 4060-A-AL Dixon
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 4in Male Cam & Groove, 6in Female NPT
Material(s): Aluminum
Features:
  • Precision machined to rigid tolerances.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 316 Stainless Steel
Part Number		 Size
Adapter x Female NPT		 Maximum Operating Pressure
2015-A-AL - 2015-A-SS* 2" x 1-1/2" 250 PSI
2030-A-AL - 2030-A-SS 2" x 3" 125 PSI
- 2520-A-BR - 2-1/2" x 2" 125 PSI
3020-A-AL - 3020-A-SS 3" x 2" 125 PSI
3040-A-AL - - 3" x 4" 100 PSI
4030-A-AL - 4030-A-SS* 4" x 3" 100 PSI
4060-A-AL - - 4" x 6" 75 PSI
6040-A-AL - 6040-A-SS* 6" x 4" 75 PSI

* Parts are produced as a welded fabrication
