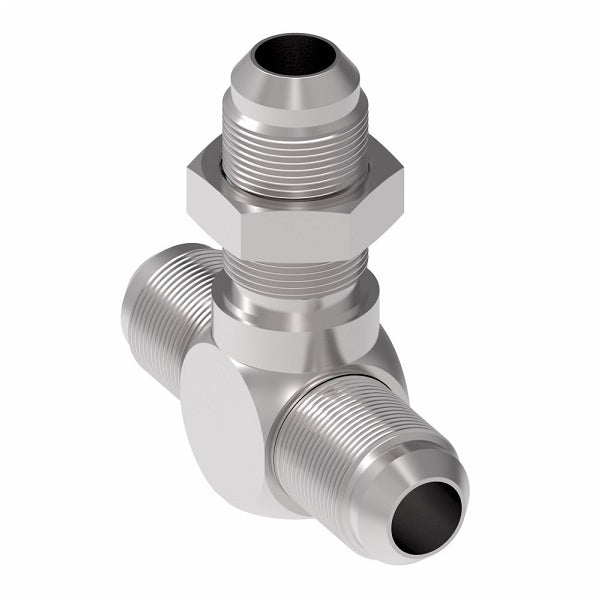

203002-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Branch/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare Bulkhead | Steel
203002-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Branch/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare Bulkhead | Steel
203002-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Branch/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare Bulkhead | Steel
203002-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Branch/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare Bulkhead | Steel

203002-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Branch/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare Bulkhead | Steel

$42.53 - $42.53
$42.53
$42.53 - $42.53
$42.53

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead Branch/37° JIC Flare Tee Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare Bulkhead

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203002-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male JIC, 3/4in Male JIC, 3/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070959
Part Number
Steel 		Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A B
203002-4-4S 203002-1-4-4S 0.25" 7/16-20 7/16-20 1.59" 0.97"
203002-5-5S - 0.31" 1/2-20 1/2-20 1.72" 1.06"
203002-6-6S 203002-1-6-6S 0.38" 9/16-18 9/16-18 1.81" 1.09"
203002-8-8S 203002-1-8-8S 0.50" 3/4-16 3/4-16 2.11" 1.36"
203002-10-10S 203002-1-10-10S 0.63" 7/8-14 7/8-14 2.39" 1.56"
203002-12-12S 203002-1-12-12S 0.75" 1-1/16-12 1-1/16-12 2.67" 1.78"
203002-16-16S 203002-1-16-16S 1.00" 1-5/16-12 1-5/16-12 2.80" 1.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
