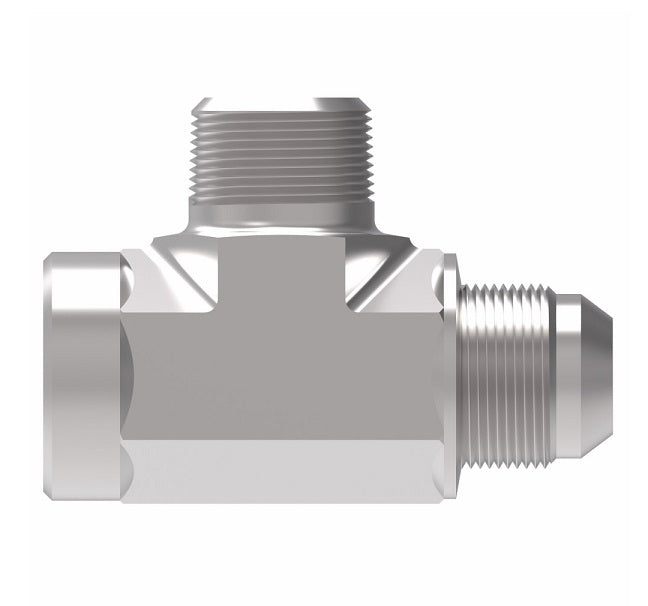

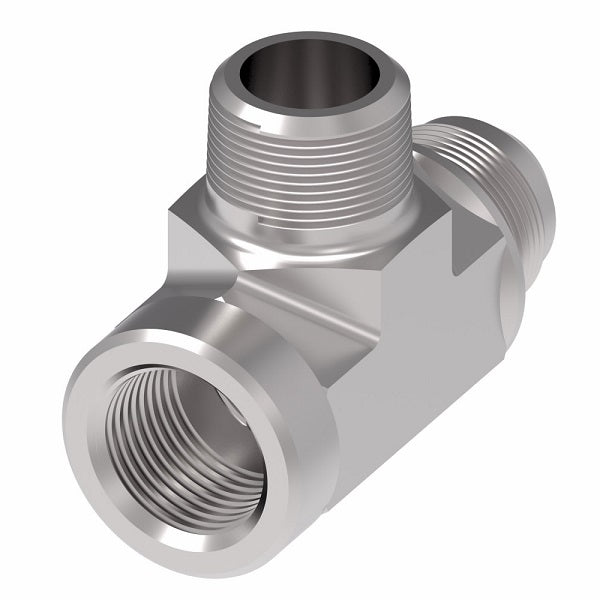

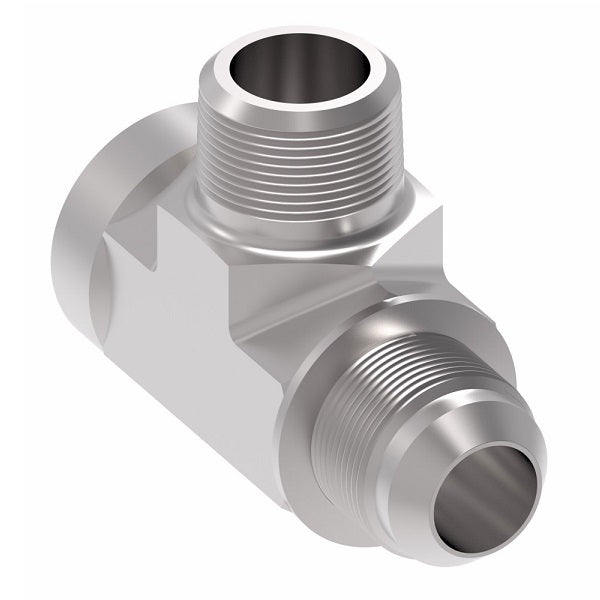

203006-12-12S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 SAE 37° Male Flare | Steel
203006-12-12S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 SAE 37° Male Flare | Steel
203006-12-12S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 SAE 37° Male Flare | Steel
203006-12-12S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 SAE 37° Male Flare | Steel

203006-12-12S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 SAE 37° Male Flare | Steel

$36.78 - $36.78
$36.78
$36.78 - $36.78
$36.78

Aeroquip® by Danfoss
External Pipe Run/37° JIC Flare Tee Adapter
Male NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203006-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male NPTF, 3/4in Female NPTF, 3/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070424
Part Number
Steel		 Tube O.D. Thread P Thread T A B C
203006-4-6S 0.38" 1/4-18 9/16-18 1.09" 0.88" 1.23"
203006-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.02" 1.42"
203006-8-10S - - - - - -
203006-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.36" 1.89"
203006-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.62" 2.71"
203006-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.33" 1.70" 2.38"
