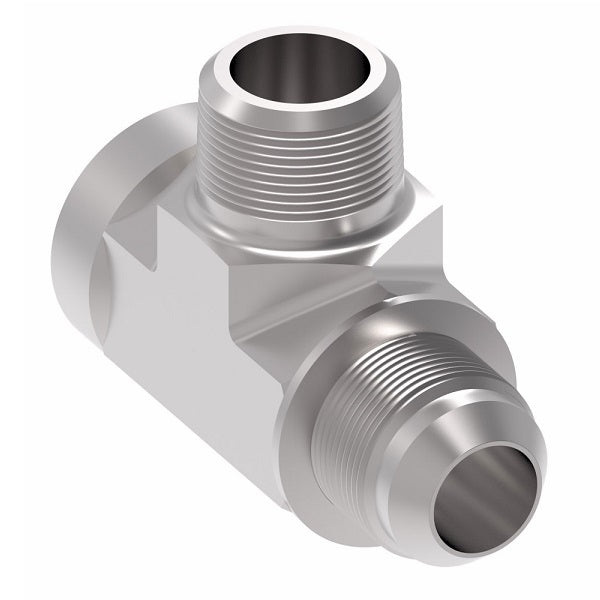

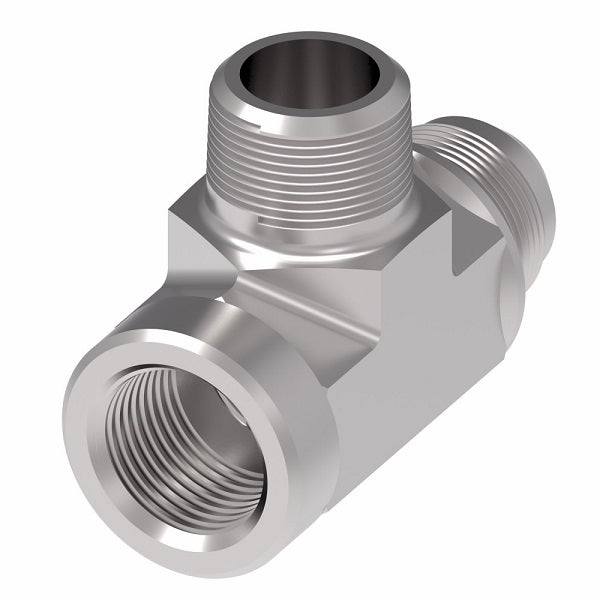

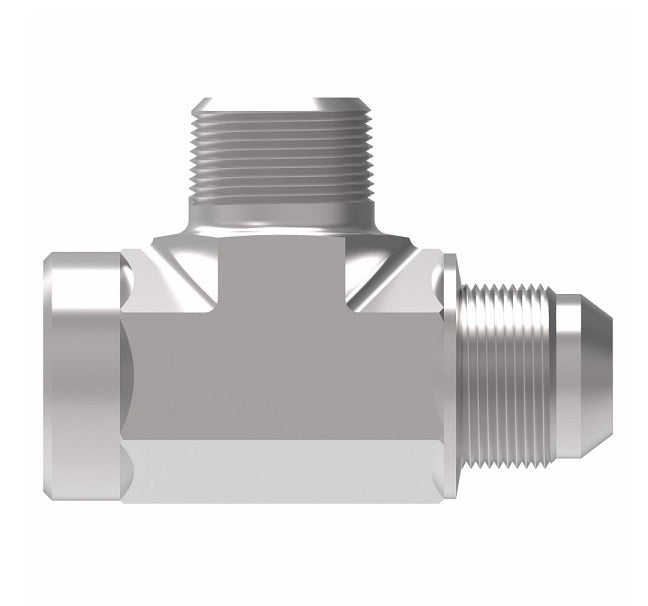

203006-16-16S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -16 Male NPTF x -16 Female NPTF x -16 SAE 37° Male Flare | Steel

203006-16-16S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -16 Male NPTF x -16 Female NPTF x -16 SAE 37° Male Flare | Steel

Name: 203006-16-16S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -16 Male NPTF x -16 Female NPTF x -16 SAE 37° Male Flare | Steel
Brand: Danfoss/Eaton
SKU: 203006-16-16S Danfoss
Price: 115.55 USD
Availability: InStock

$115.55 - $115.55

$115.55

$115.55 - $115.55

$115.55

Aeroquip® by Danfoss
External Pipe Run/37° JIC Flare Tee Adapter
Male NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 203006-16-16S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1in Male NPTF, 1in Female NPTF, 1in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070424


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B	C
203006-4-6S	0.38"	1/4-18	9/16-18	1.09"	0.88"	1.23"
203006-6-8S	0.50"	3/8-18	3/4-16	1.22"	1.02"	1.42"
203006-8-10S	-	-	-	-	-	-
203006-12-12S	0.75"	3/4-14	1-1/16-12	1.59"	1.36"	1.89"
203006-16-16S	1.00"	1-11-1/2	1-5/16-12	1.97"	1.62"	2.71"
203006-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.33"	1.70"	2.38"
