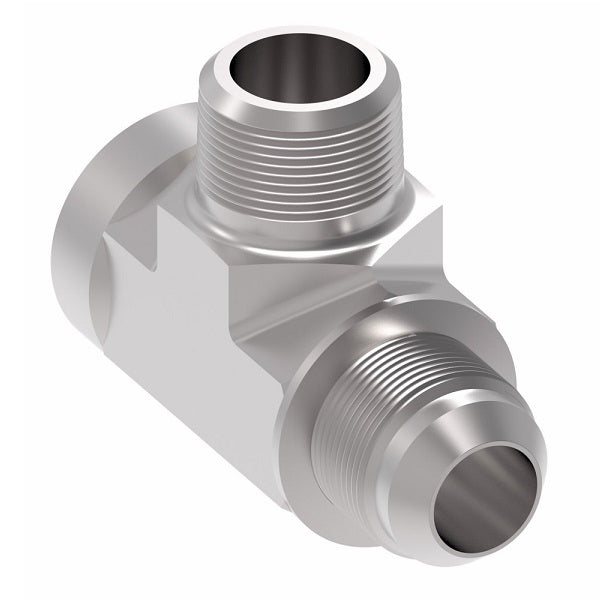

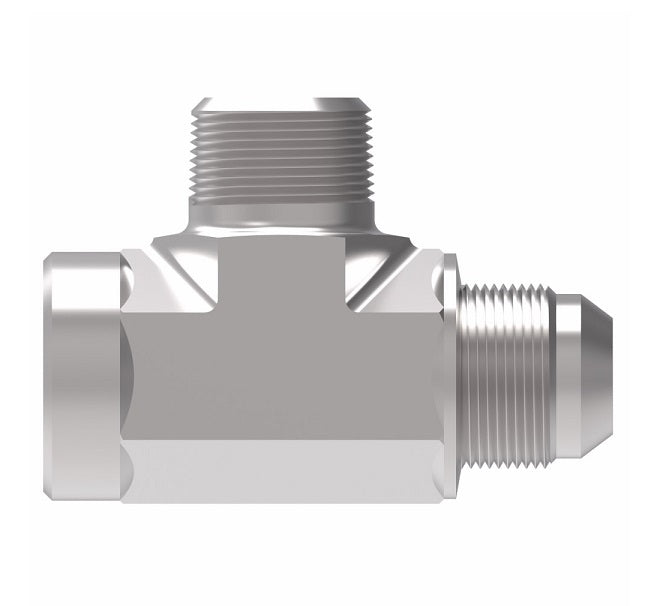

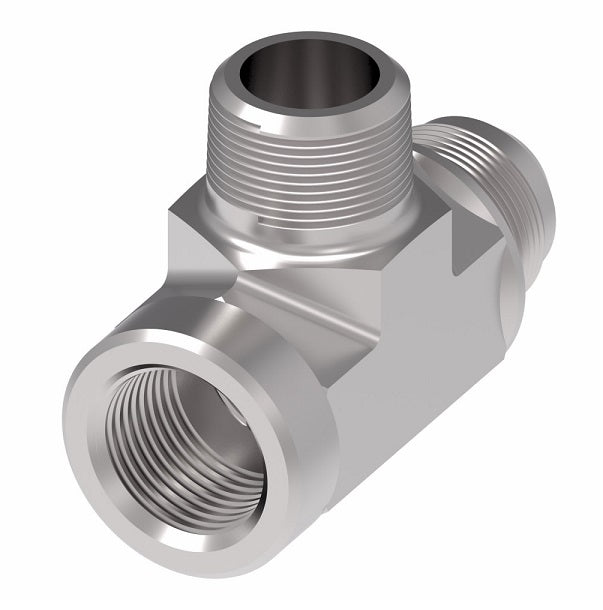

203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel

203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel

Name: 203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel
Brand: Danfoss/Eaton
SKU: 203006-4-6S Danfoss
Price: 26.94 USD
Availability: InStock

$26.94 - $26.94

$26.94

$26.94 - $26.94

$26.94

Aeroquip® by Danfoss
External Pipe Run/37° JIC Flare Tee Adapter
Male NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 203006-4-6S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/4in Male NPTF, 1/4in Female NPTF, 3/8in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070424


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B	C
203006-4-6S	0.38"	1/4-18	9/16-18	1.09"	0.88"	1.23"
203006-6-8S	0.50"	3/8-18	3/4-16	1.22"	1.02"	1.42"
203006-8-10S	-	-	-	-	-	-
203006-12-12S	0.75"	3/4-14	1-1/16-12	1.59"	1.36"	1.89"
203006-16-16S	1.00"	1-11-1/2	1-5/16-12	1.97"	1.62"	2.71"
203006-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.33"	1.70"	2.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
