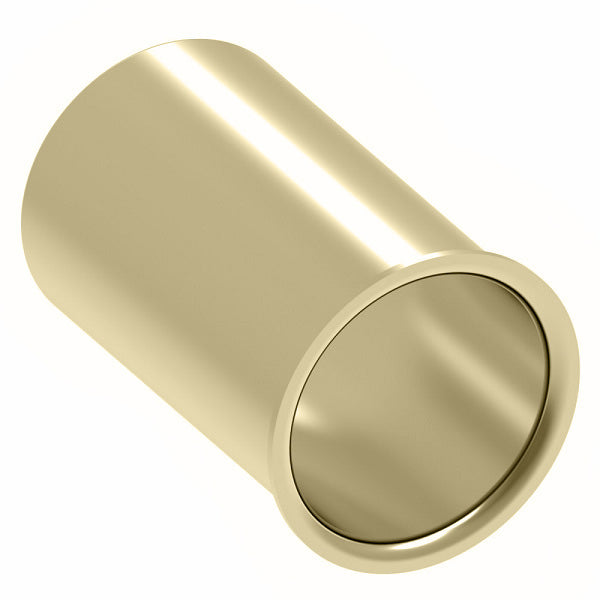

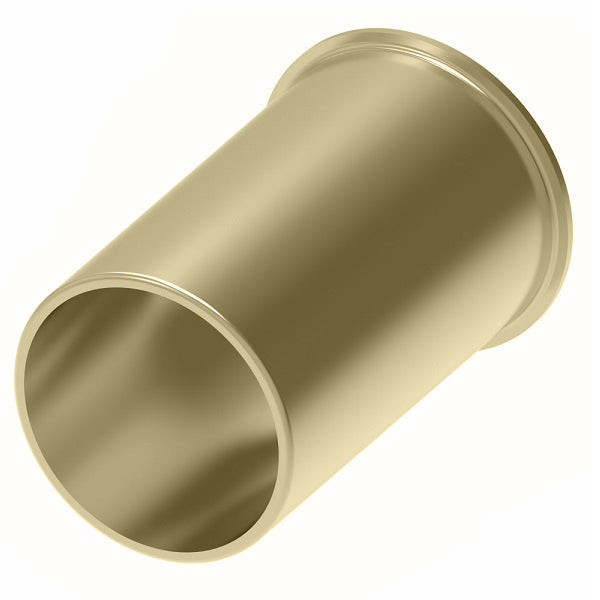

2030X4 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing (For .126" ID Tubing) | 1/4" Tube OD | Brass
2030X4 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing (For .126" ID Tubing) | 1/4" Tube OD | Brass
2030X4 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing (For .126" ID Tubing) | 1/4" Tube OD | Brass
2030X4 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing (For .126" ID Tubing) | 1/4" Tube OD | Brass

2030X4 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing (For .126" ID Tubing) | 1/4" Tube OD | Brass

$1.01 - $1.01
$1.01
$1.01 - $1.01
$1.01

Aeroquip® by Danfoss
Compression Fitting - Tube Support for Plastic Tubing - Straight

Use only with PT200 and PT240 Tubing.
Specifications for Variant SKU: 2030X4 Danfoss
Shape (Orientation): No Orientation
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number 		Tube O.D. Diameter
A		 Diameter
B		 Diameter
C		 Length
D
2030X4* 1/4" 1/8" 3/32" 11/64" 19/32"
2030X44** 1/4" 11/64" 9/64" 7/32" 17/32"
2030X5 5/16" 3/16" 5/32" 15/64" 5/8"
2030X6 3/8" 1/4" 7/32" 11/32" 41/64"
2030X8 1/2" 3/8" 11/32" 7/16" 13/16"
2030X10 5/8" 1/2" 29/64" 35/64" 13/16"
2030X12 3/4" 9/16" 33/64" 11/16" 1-1/32"

* For Tubing with .126 I.D./.062 wall thickness

** For tubing with .170 I.D./.040 wall thickness
