Fittings and Clamps  > Tube Fittings  > Tube Adapters

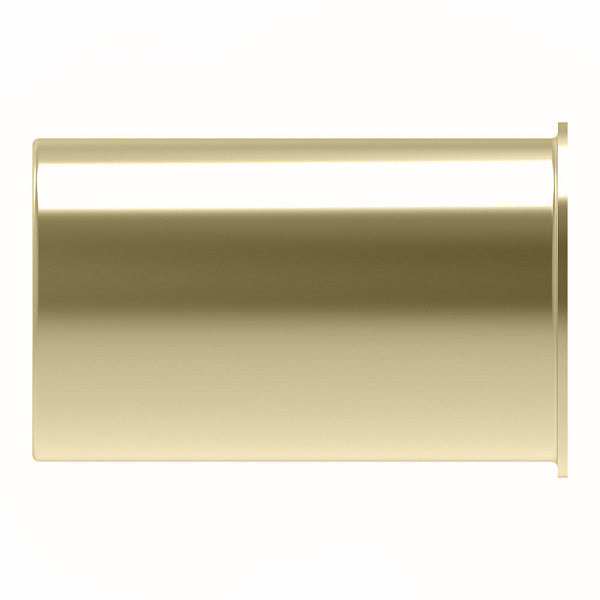

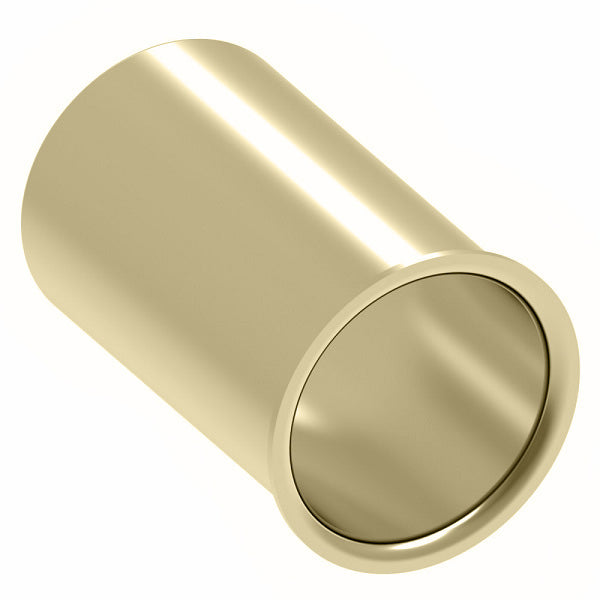

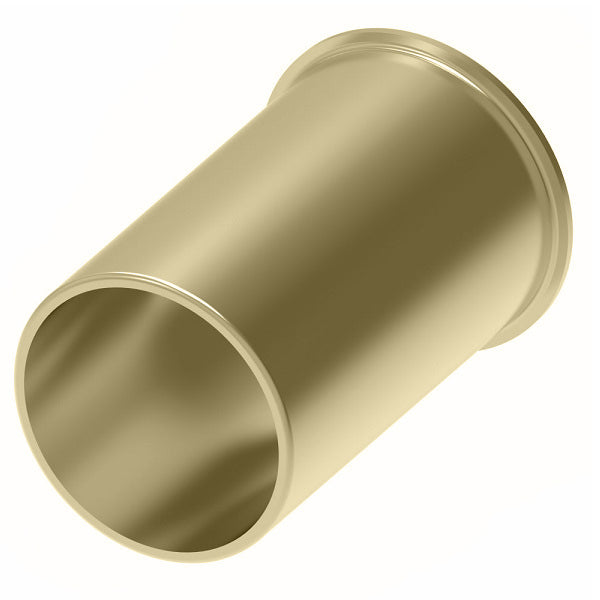

2030X6 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing | 3/8" Tube OD | Brass

2030X6 by Danfoss | Compression Fitting | Tube Support for Plastic Tubing | 3/8" Tube OD | Brass

$0.53

Aeroquip® by Danfoss
Compression Fitting - Tube Support for Plastic Tubing - Straight

Use only with PT200 and PT240 Tubing.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2030X6 Danfoss
Shape (Orientation): No Orientation
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number 		Tube O.D. Diameter
A		 Diameter
B		 Diameter
C		 Length
D
2030X4* 1/4" 1/8" 3/32" 11/64" 19/32"
2030X44** 1/4" 11/64" 9/64" 7/32" 17/32"
2030X5 5/16" 3/16" 5/32" 15/64" 5/8"
2030X6 3/8" 1/4" 7/32" 11/32" 41/64"
2030X8 1/2" 3/8" 11/32" 7/16" 13/16"
2030X10 5/8" 1/2" 29/64" 35/64" 13/16"
2030X12 3/4" 9/16" 33/64" 11/16" 1-1/32"

* For Tubing with .126 I.D./.062 wall thickness

** For tubing with .170 I.D./.040 wall thickness
