2031-2-3S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -02 Female NPTF x -03 Male 37° JIC Flare x -03 Male 37° JIC Flare | Steel

2031-2-3S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -02 Female NPTF x -03 Male 37° JIC Flare x -03 Male 37° JIC Flare | Steel

Name: 2031-2-3S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -02 Female NPTF x -03 Male 37° JIC Flare x -03 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2031-2-3S Danfoss
Price: 28.11 USD
Availability: InStock

$28.11 - $28.11

$28.11

$28.11 - $28.11

$28.11

Aeroquip® by Danfoss

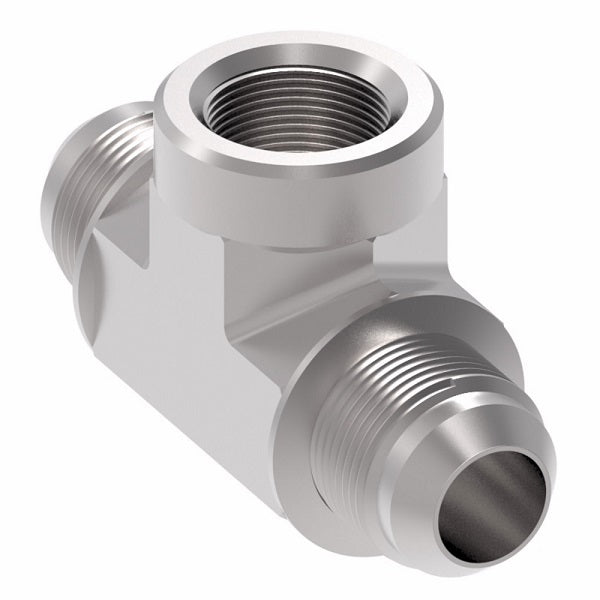

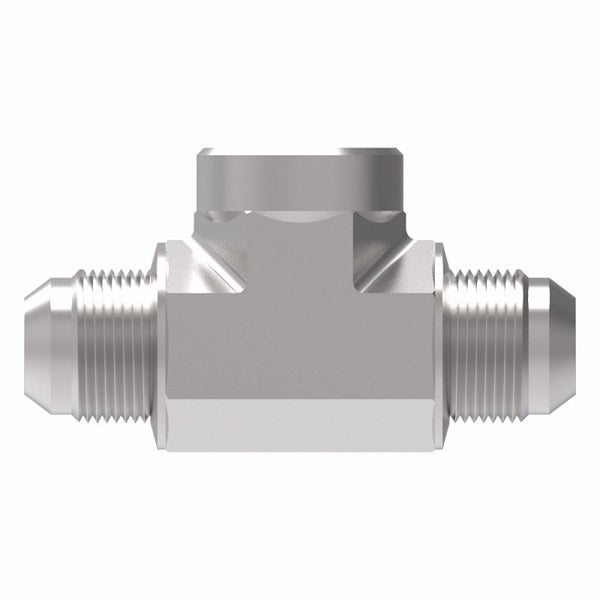

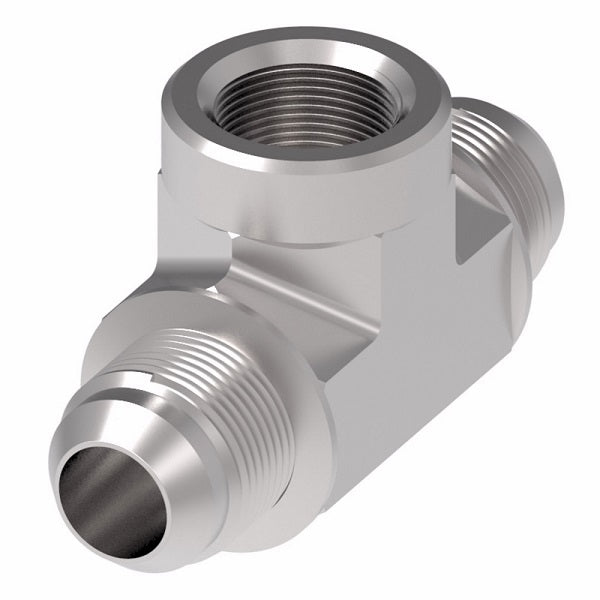

Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter
Female NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2031-2-3S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/8in Female NPTF, 3/16in Male JIC, 3/16in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070427


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
2031-2-3S	0.19"	1/8-27	3/8-24	0.66"	1.03"
2031-2-4S	0.25"	1/8-27	7/16-20	0.66"	1.08"
2031-4-4S	0.25"	1/4-18	7/16-20	0.88"	1.22"
2031-4-6S	0.38"	1/4-18	9/16-18	0.88"	1.23"
2031-6-8S	0.50"	3/8-18	3/4-16	1.02"	1.42"
2031-8-8S	0.50"	1/2-14	3/4-16	1.23"	1.52"
2031-8-10S	0.63"	1/2-14	7/8-14	1.23"	1.64"
2031-12-12S	0.75"	3/4-14	1-1/16-12	1.36"	1.89"
2031-16-16S	1.00"	1-11-1/2	1-5/16-12	1.62"	2.09"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
