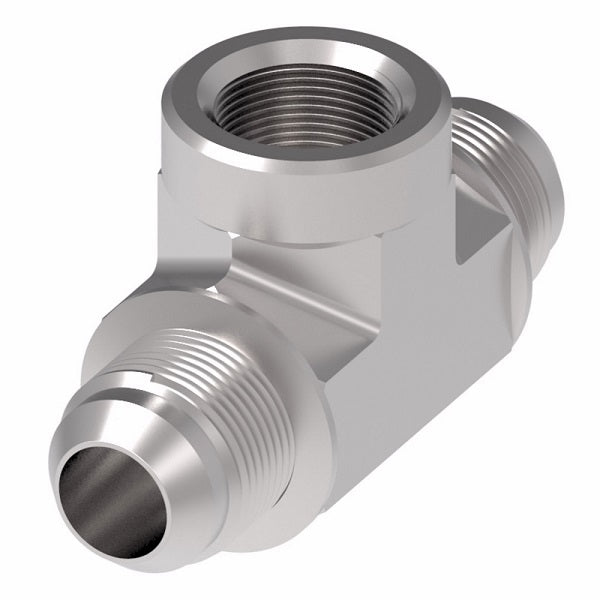

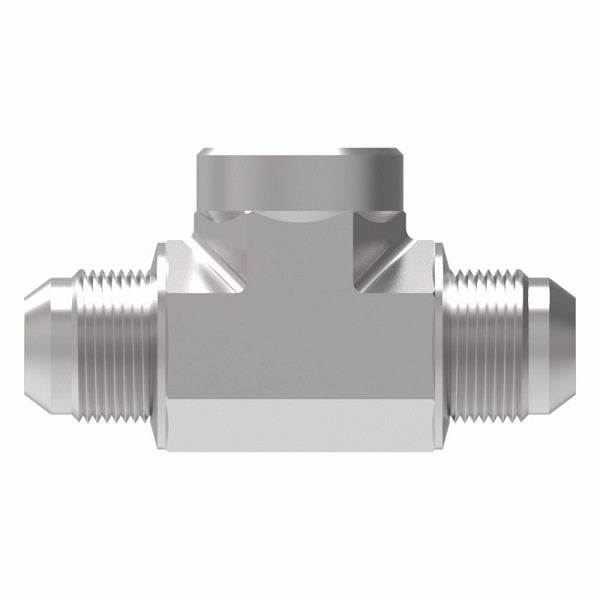

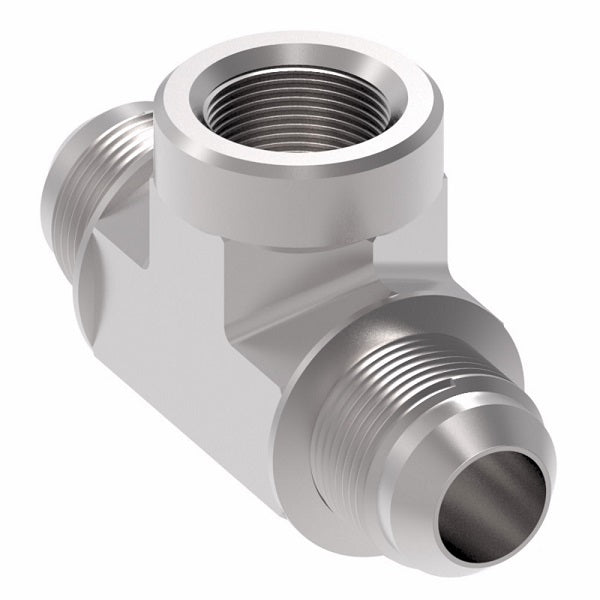

2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

$72.71 - $72.71
$72.71
$72.71 - $72.71
$72.71

Aeroquip® by Danfoss
Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter
Female NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2031-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Female NPTF, 3/4in Male JIC, 3/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070427
Part Number
Steel		 Tube O.D. Thread P Thread T A B
2031-2-3S 0.19" 1/8-27 3/8-24 0.66" 1.03"
2031-2-4S 0.25" 1/8-27 7/16-20 0.66" 1.08"
2031-4-4S 0.25" 1/4-18 7/16-20 0.88" 1.22"
2031-4-6S 0.38" 1/4-18 9/16-18 0.88" 1.23"
2031-6-8S 0.50" 3/8-18 3/4-16 1.02" 1.42"
2031-8-8S 0.50" 1/2-14 3/4-16 1.23" 1.52"
2031-8-10S 0.63" 1/2-14 7/8-14 1.23" 1.64"
2031-12-12S 0.75" 3/4-14 1-1/16-12 1.36" 1.89"
2031-16-16S 1.00" 1-11-1/2 1-5/16-12 1.62" 2.09"
