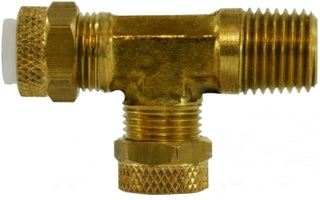

20313 (20-313) Midland Flareless Fitting - Poly-Flo® Male Run Tee - 3/8" Tube OD x 1/4" Male NPTF - Brass

20313 by Midland | Flareless Fitting | Poly-Flo® Male Run | 3/8" Tube OD x 1/4" Male NPTF | Tee | Brass

Save $1.36

$12.23

$12.23 - $12.23

$12.23

$10.87

$10.87 - $10.87

$10.87

Midland Industries
Brass Fitting - Flareless Fitting - Poly-Flo® Male Run Tee - Brass

Flareless Brass Tube Fittings are Interchangeable with Poly-Flo®, Poly-Tite®, Poly-Line® and Poly-Fit®

Built-in SS Tube Support

Inventory @ Manufacturers Warehouse: 218 Units

Quantity

Specifications for Variant SKU: 20313 Midland
Shape (Orientation):	Tee
Material(s):	Brass

Applications:	Pneumatic instrumentation circuits, lubricant and cooling lines.	Used With:	Aluminum & copper tubing. Hard plastic tubing requires brass sleeve. Not recommended for steel tubing.
SAE Rating:	N/A	Conformance:	N/A
Vibration:	Excellent Resistance.	Temperature Range:	Depends on tubing used. -65°F to +250°F (-53°C to +121°C) with brass sleeve -40°F to +150°F (-40°C to +66°C) with plastic sleeve. (Refer to tubing temperature range.)
Tolerance:	+/- .02 on all dimensions.	Lead Free:	Not Lead Free

Working Pressure and Temperature Ranges:

Up to 150 PSI from 0°F to + 150°F with thermoplastic tubing. Up to 300 PSI from 0°F to + 175°F with soft metal tubing.

Maximum allowable metal tube wall thickness for use with Poly-Tite® fittings::

1/8", 3/16" O.D. -- no limitation
1/4" O.D.--.035 5/16", 3/8",1/2" O.D.--.049

Assembly Instructions:

1) Cut tubing to desired length.
2) Slide nut/sleeve assembly on tube. Threaded end "A" of nut must face toward fitting.
3) Bottom tubing into fitting.
4) Plastic sleeve - Tighten nut hand tight.
Brass Sleeve - Tighten nut hand tight, then an additional 3/4 turn.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	1/2"
Thread Size - B	5/16-24	3/8-24	3/8-24	7/16-24	1/2-24	11/16-20

**Note: 1/8 and 3/16 sizes have brass sleeves**

Crossover Series:
MP71	271PF	1271	171P


Part Number	Tube O.D x Male NPTF	A	B	Body Size	Approx. Weight (Lbs.)
20308 (20-308)	1/8" x 1/8"	0.62"	0.69"	0.31"	0.04
20309 (20-309)	3/16" x 1/8"	0.62"	0.69"	0.31"	0.04
20310 (20-310)	1/4" x 1/8"	0.62"	0.75"	0.37"	0.08
20311 (20-311)	1/4" x 1/4"	0.66"	0.94"	0.37"	0.10
20312 (20-312)	5/16" x 1/8"	0.62"	0.75"	0.37"	0.08
20313 (20-313)	3/8" x 1/4"	0.66"	0.94"	0.44"	0.10
20314 (20-314)	1/2" x 3/8"	0.81"	1.06"	0.63"	0.16

Dimension data can change without notice.
