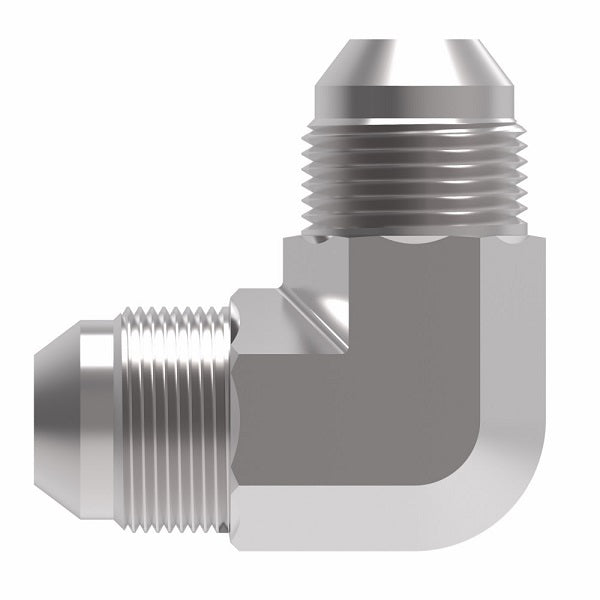

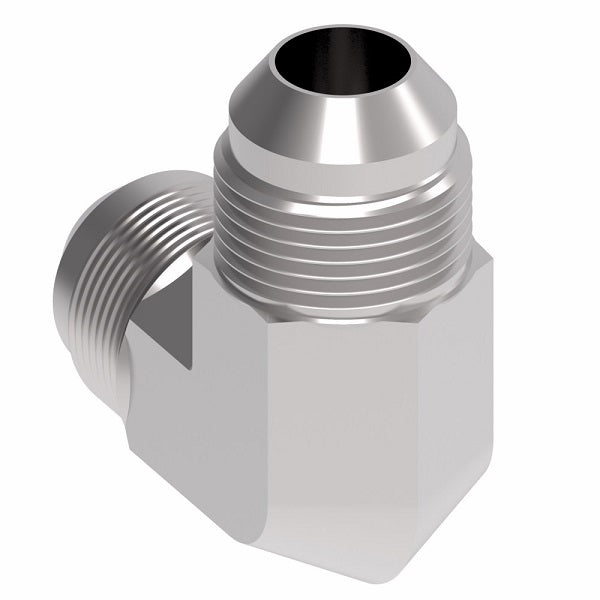

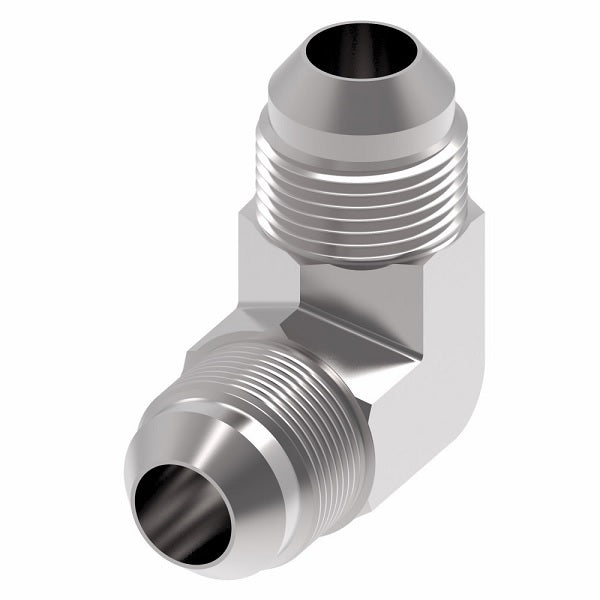

2039-10-10S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
2039-10-10S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
2039-10-10S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
2039-10-10S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel

2039-10-10S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel

$18.45 - $18.45
$18.45
$18.45 - $18.45
$18.45

Aeroquip® by Danfoss
Male 37° JIC Flare Adapter
Male 37° JIC Flare x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2039-10-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male JIC, 5/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070201
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 A B
2039-4-4S 0.25" 7/16-20 7/16-20 0.89" 0.89"
2039-5-5S 0.31" 1/2-20 1/2-20 0.95" 0.95"
2039-6-6S 0.38" 9/16-18 9/16-18 1.06" 1.06"
2039-8-6S 0.38" 3/4-16 9/16-16 1.25" 1.14"
2039-8-8S 0.50" 3/4-16 3/4-16 1.25" 1.25"
2039-10-10S 0.63" 7/8-14 7/8-14 1.45" 1.45"
2039-12-12S 0.75" 1-1/16-12 1-1/16-12 1.66" 1.66"
2039-16-12S 0.75" 1-5/16-12 1-1/16-12 1.81" 1.76"
2039-16-16S 1.00" 1-5/16-12 1-5/16-12 1.81" 1.81"
2039-20-20S 1.25" 1-5/8-12 1-5/8-12 2.06" 2.06"
2039-24-24S 1.50" 1-7/8-12 1-7/8-12 2.33" 2.33"
2039-32-32S 2.00" 2-1/2-12 2-1/2-12 3.06" 3.06"
